Corian® for Kitchen Worktops

[st3v3]

Have a look at this. Very strong and the edges you see in the pic are what you get when you saw through it. Cuts with normal tools, but is hard on blades. It's heavy for It's thickness but will be a lot lighter than corian.

Shop around...

Neptunite Compact Worktop - 3050 x 610 x 12mm | Wickes.co.uk

Neptunite Compact Worktop - 3050 x 610 x 12mm

www.wickes.co.uk



[merl]

Have a look at this. Very strong and the edges you see in the pic are what you get when you saw through it. Cuts with normal tools, but is hard on blades. It's heavy for It's thickness but will be a lot lighter than corian.

Shop around...

Neptunite Compact Worktop - 3050 x 610 x 12mm | Wickes.co.uk

Neptunite Compact Worktop - 3050 x 610 x 12mm

www.wickes.co.uk

Yep, that's solid laminate Steve



[1 Cup]

Have a look at this. Very strong and the edges you see in the pic are what you get when you saw through it. Cuts with normal tools, but is hard on blades. It's heavy for It's thickness but will be a lot lighter than corian.

Shop around...

Neptunite Compact Worktop - 3050 x 610 x 12mm | Wickes.co.uk

Neptunite Compact Worktop - 3050 x 610 x 12mm

www.wickes.co.uk

You know me Steve I want bright white & sparkling, Through and through . so the hight / edges matches the top. When polished.

Couldn't put a thurl as it only 12mm

Or should I just use glued

pins

But 32 kg so in the right ball park.

Thanks



[Calianbay]

Solid laminate every time 12mm thick even ikea sell it at various lengths and some good online offers too



[1 Cup]

So found it. X4 pieces. Secondhand.
hard to get at right price but today found it for a price I could lean using and still work for us in van.

Need tools 1/4 router jig saw 6in circular. What blades and bits. ?.. and a polishing / buffer tools



[merl]

So found it. X4 pieces. Secondhand.
hard to get at right price but today found it for a price I could lean using and still work for us in van.

Need tools 1/4 router jig saw 6in circular. What blades and bits. ?.. and a polishing / buffer tools

Personally I've cut it slightly oversized with an angle grinder with a segmented mesh blade and dont bother with a circular because the blades knacker really fast.

OX Trade XL Tile Diamond Blade 115mm x 22.23mm - Screwfix

Order online at Screwfix.com. Multipurpose blade cuts ceramic to medium-hard natural stone tiles. Precise, chip-free finish. Fast cutting diamond segment ensures swift and smooth cutting. FREE next day delivery available, free collection in 1 minute.

www.screwfix.com

Set up a fence and then routered the faces that you see. (TCT obvs)
Polish the visible edges, start with approx 180 grit, then 400, then 800 and finally 1200 and finally finish off with Farecle polishing compound if you can get it in small amounts? If not use a further 2000 grit and T-cut.



[1 Cup]

So tools and personnel required to install ready for Saturday.

Looking for bits and blades. The drip bit I found is £100. So no anti drip bit ! But what about these ? Are these what I need ?

5Pcs 4" Diamond Recoating Saw Blade T-Shank for Ceramic Tile Marble Stone | eBay

Specification: Type: Saw Blade Model: T-Shank Material: High Carbon Steel Overall Length: app.100mm/3.94inch Tooth Length: app.76mm/2.99inch Gravel: 50# Color: Black Multi-purpose: used for cutting granite and marble, ceramics and ceramic tile, quartzite, etc. Note: Due to the difference between...

www.ebay.co.uk

Diamond Router Bits Golden Vacuum Brazed Straight Shank for Quartz Stone Marble | eBay

2–12mm Diamond Grinding Head Concave Wheel 1/4" Shank F Polishing Jade Glass 1PC. 20Pc Diamond Burr Rotary Grinding Drill Bits Head Kit Wood Milling Carving Tools. 5Pcs Mini Diamond Cutting Discs Saw Blade with 5Pcs Mandrel for Rotary Tool.

www.ebay.co.uk

Vacuum Brazed Diamond Router Bits with 1/2" Shank, Router Cutter for Stone Cut | eBay

35mm Diamond Bevelling Chamfer Bits Milling Cone Bit Enlarging Holes Tile M14. 35mm Diamond Milling Bits Bevelling Chamfer Bit Enlarging Hole Saw Porcelain M14. Vacuum Brazed technology provide longer working life and high working efficience.

www.ebay.co.uk

Pack of 6 E Sink Brackets With Epoxy Clips For Undermount Stainless Steel Sinks | eBay

Manufactured from zinc plated steel.

www.ebay.co.uk

Large Super Deep Single Bowl Square Stainless Steel Kitchen Sink Undermount | eBay

Type:Undermount Sink. Sink Style: Single Bowl. Model:Square steel Sink. Room:Dining Room, Kitchen, Bathroom, Bar. 1x square sink. Made of Grade stainless steel thickness for quality and longevity of use, excellent corrosion resistance, lead free.

www.ebay.co.uk



[1 Cup]

Can I use any apoxy resin for under neath / base of worktop.

Sharp corners or rounded corners for underslung sink?



[st3v3]

So tools and personnel required to install ready for Saturday.

Looking for bits and blades. The drip bit I found is £100. So no anti drip bit ! But what about these ? Are these what I need ?

5Pcs 4" Diamond Recoating Saw Blade T-Shank for Ceramic Tile Marble Stone | eBay

Specification: Type: Saw Blade Model: T-Shank Material: High Carbon Steel Overall Length: app.100mm/3.94inch Tooth Length: app.76mm/2.99inch Gravel: 50# Color: Black Multi-purpose: used for cutting granite and marble, ceramics and ceramic tile, quartzite, etc. Note: Due to the difference between...

www.ebay.co.uk

Diamond Router Bits Golden Vacuum Brazed Straight Shank for Quartz Stone Marble | eBay

2–12mm Diamond Grinding Head Concave Wheel 1/4" Shank F Polishing Jade Glass 1PC. 20Pc Diamond Burr Rotary Grinding Drill Bits Head Kit Wood Milling Carving Tools. 5Pcs Mini Diamond Cutting Discs Saw Blade with 5Pcs Mandrel for Rotary Tool.

www.ebay.co.uk

Vacuum Brazed Diamond Router Bits with 1/2" Shank, Router Cutter for Stone Cut | eBay

35mm Diamond Bevelling Chamfer Bits Milling Cone Bit Enlarging Holes Tile M14. 35mm Diamond Milling Bits Bevelling Chamfer Bit Enlarging Hole Saw Porcelain M14. Vacuum Brazed technology provide longer working life and high working efficience.

www.ebay.co.uk

Pack of 6 E Sink Brackets With Epoxy Clips For Undermount Stainless Steel Sinks | eBay

Manufactured from zinc plated steel.

www.ebay.co.uk

Large Super Deep Single Bowl Square Stainless Steel Kitchen Sink Undermount | eBay

Type:Undermount Sink. Sink Style: Single Bowl. Model:Square steel Sink. Room:Dining Room, Kitchen, Bathroom, Bar. 1x square sink. Made of Grade stainless steel thickness for quality and longevity of use, excellent corrosion resistance, lead free.

www.ebay.co.uk

I've got a selection of stuff. We also have quite a few places around to buy bits and blades.

So, don't worry about it for now.

All of those picture show the sink mounted from above, which I actually quite like the look of The cut out definitely wants the corners rounded at least a bit to make it stronger.



[Robmac]

Polish the visible edges, start with approx 180 grit, then 400, then 800 and finally 1200 and finally finish off with Farecle polishing compound if you can get it in small amounts? If not use a further 2000 grit and T-cut.

Brilliant stuff Merl.

I used it only last week to rub out 2 scratches on my Daughter's T5 - you wouldn't know they had ever been there. Used it a lot on boats too.



[merl]

So tools and personnel required to install ready for Saturday.

Looking for bits and blades. The drip bit I found is £100. So no anti drip bit ! But what about these ? Are these what I need ?

5Pcs 4" Diamond Recoating Saw Blade T-Shank for Ceramic Tile Marble Stone | eBay

Specification: Type: Saw Blade Model: T-Shank Material: High Carbon Steel Overall Length: app.100mm/3.94inch Tooth Length: app.76mm/2.99inch Gravel: 50# Color: Black Multi-purpose: used for cutting granite and marble, ceramics and ceramic tile, quartzite, etc. Note: Due to the difference between...

www.ebay.co.uk

Diamond Router Bits Golden Vacuum Brazed Straight Shank for Quartz Stone Marble | eBay

2–12mm Diamond Grinding Head Concave Wheel 1/4" Shank F Polishing Jade Glass 1PC. 20Pc Diamond Burr Rotary Grinding Drill Bits Head Kit Wood Milling Carving Tools. 5Pcs Mini Diamond Cutting Discs Saw Blade with 5Pcs Mandrel for Rotary Tool.

www.ebay.co.uk

Vacuum Brazed Diamond Router Bits with 1/2" Shank, Router Cutter for Stone Cut | eBay

35mm Diamond Bevelling Chamfer Bits Milling Cone Bit Enlarging Holes Tile M14. 35mm Diamond Milling Bits Bevelling Chamfer Bit Enlarging Hole Saw Porcelain M14. Vacuum Brazed technology provide longer working life and high working efficience.

www.ebay.co.uk

Pack of 6 E Sink Brackets With Epoxy Clips For Undermount Stainless Steel Sinks | eBay

Manufactured from zinc plated steel.

www.ebay.co.uk

Large Super Deep Single Bowl Square Stainless Steel Kitchen Sink Undermount | eBay

Type:Undermount Sink. Sink Style: Single Bowl. Model:Square steel Sink. Room:Dining Room, Kitchen, Bathroom, Bar. 1x square sink. Made of Grade stainless steel thickness for quality and longevity of use, excellent corrosion resistance, lead free.

www.ebay.co.uk

What stuff have you purchased for the worktops exactly? Corrian or solid laminate or something else?



[st3v3]

What stuff have you purchased for the worktops exactly? Corrian or solid laminate or something else?

Corrian I believe, I was drunk when we spoke



[1 Cup]

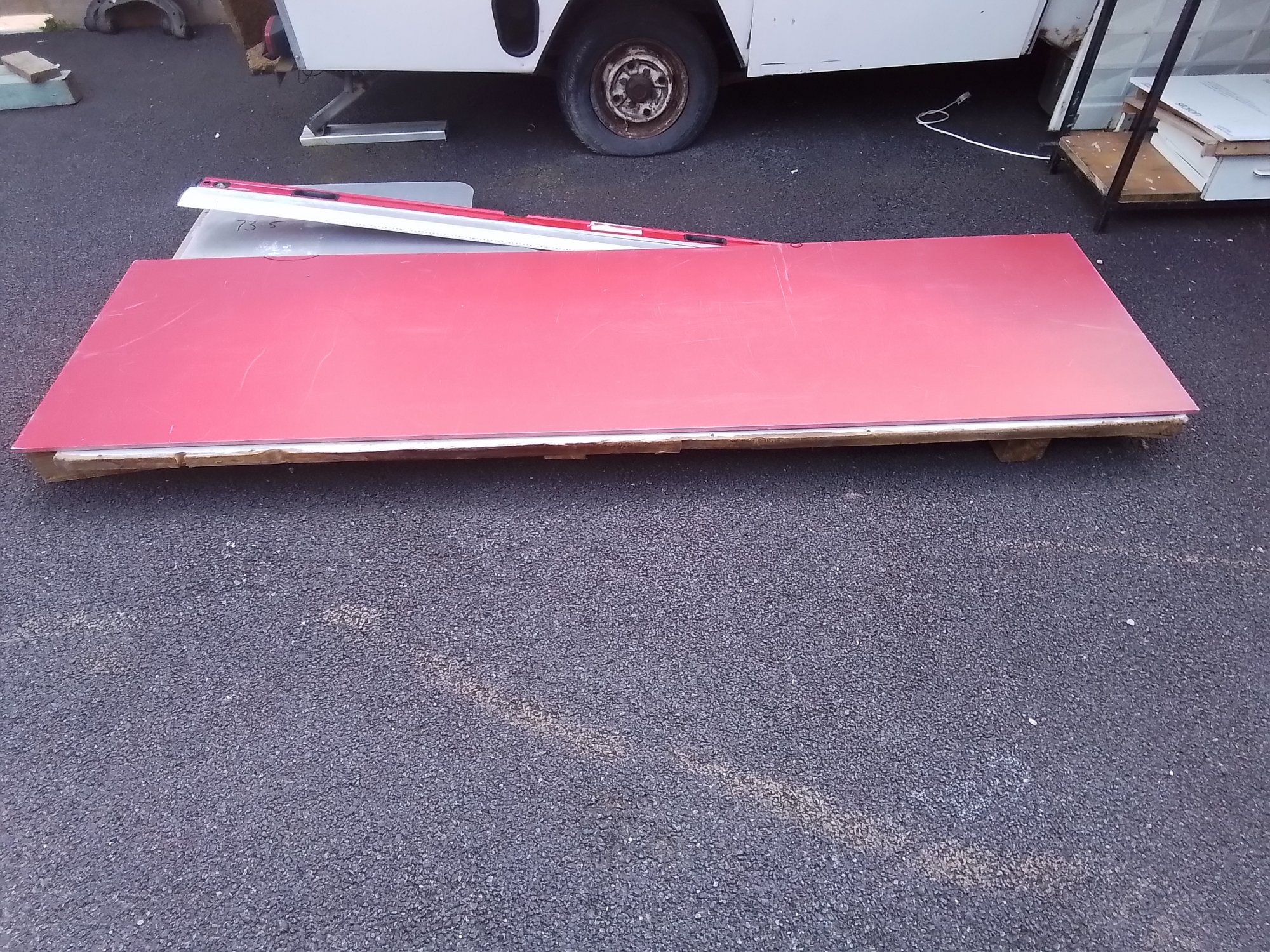

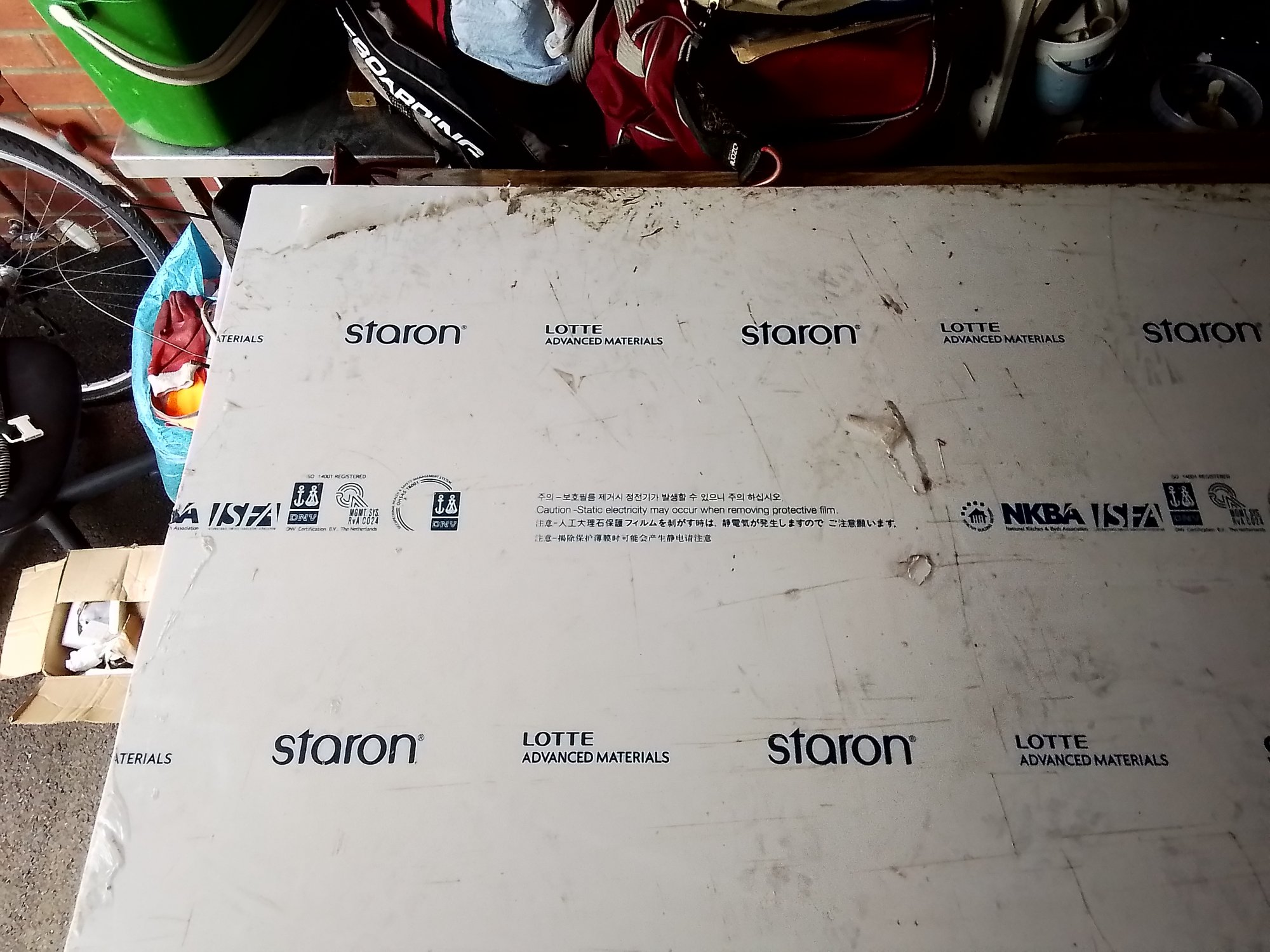

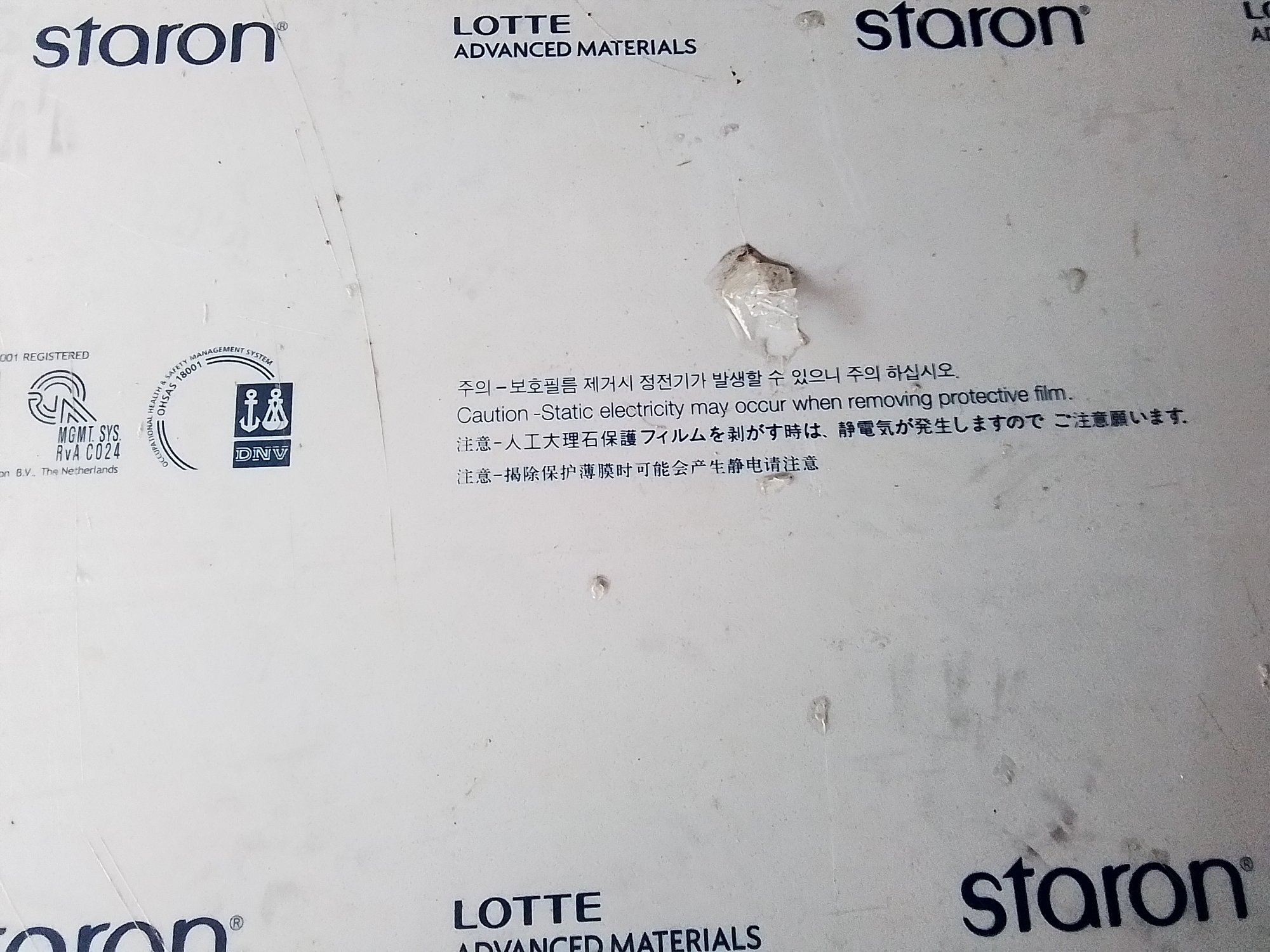

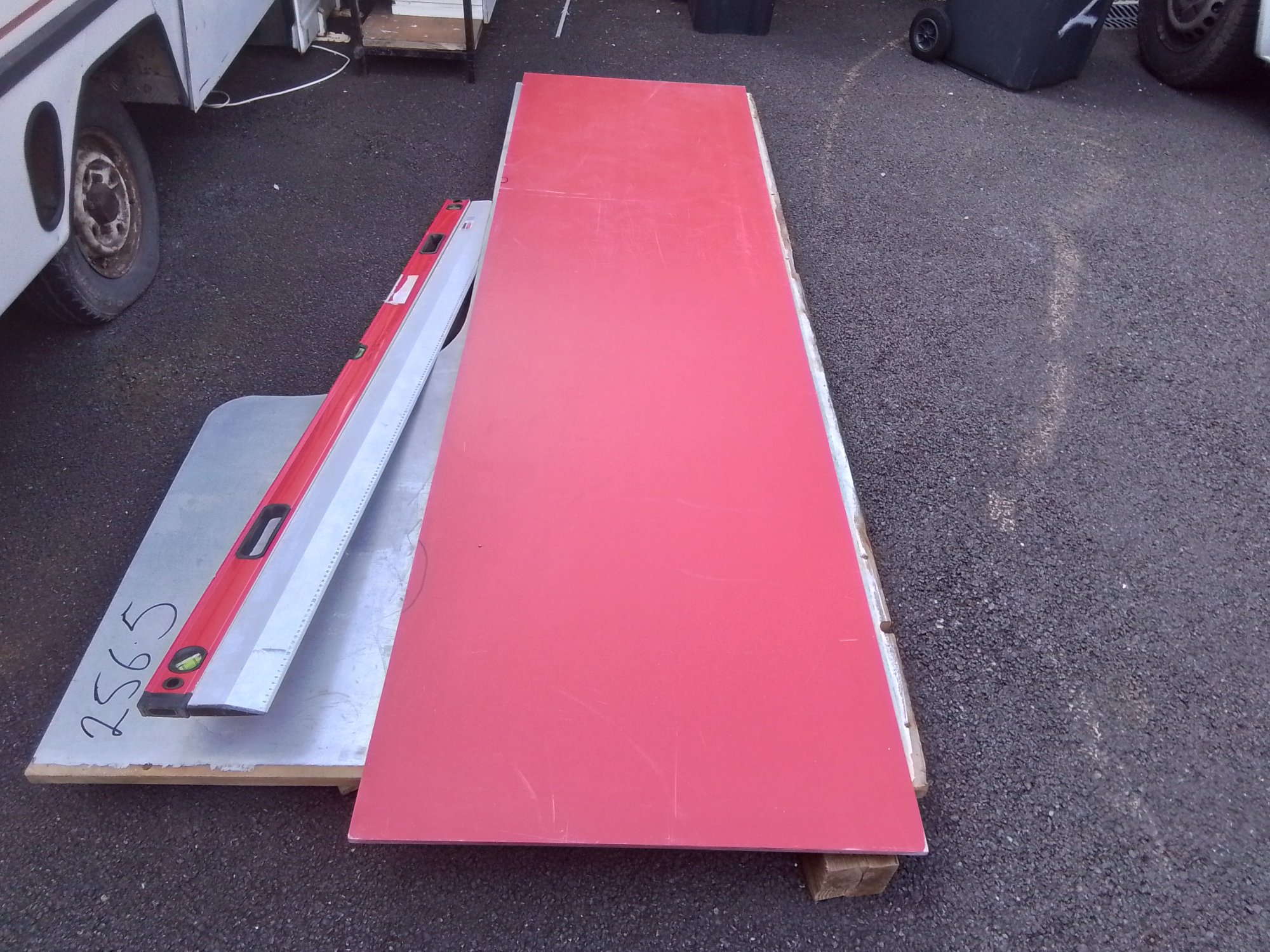

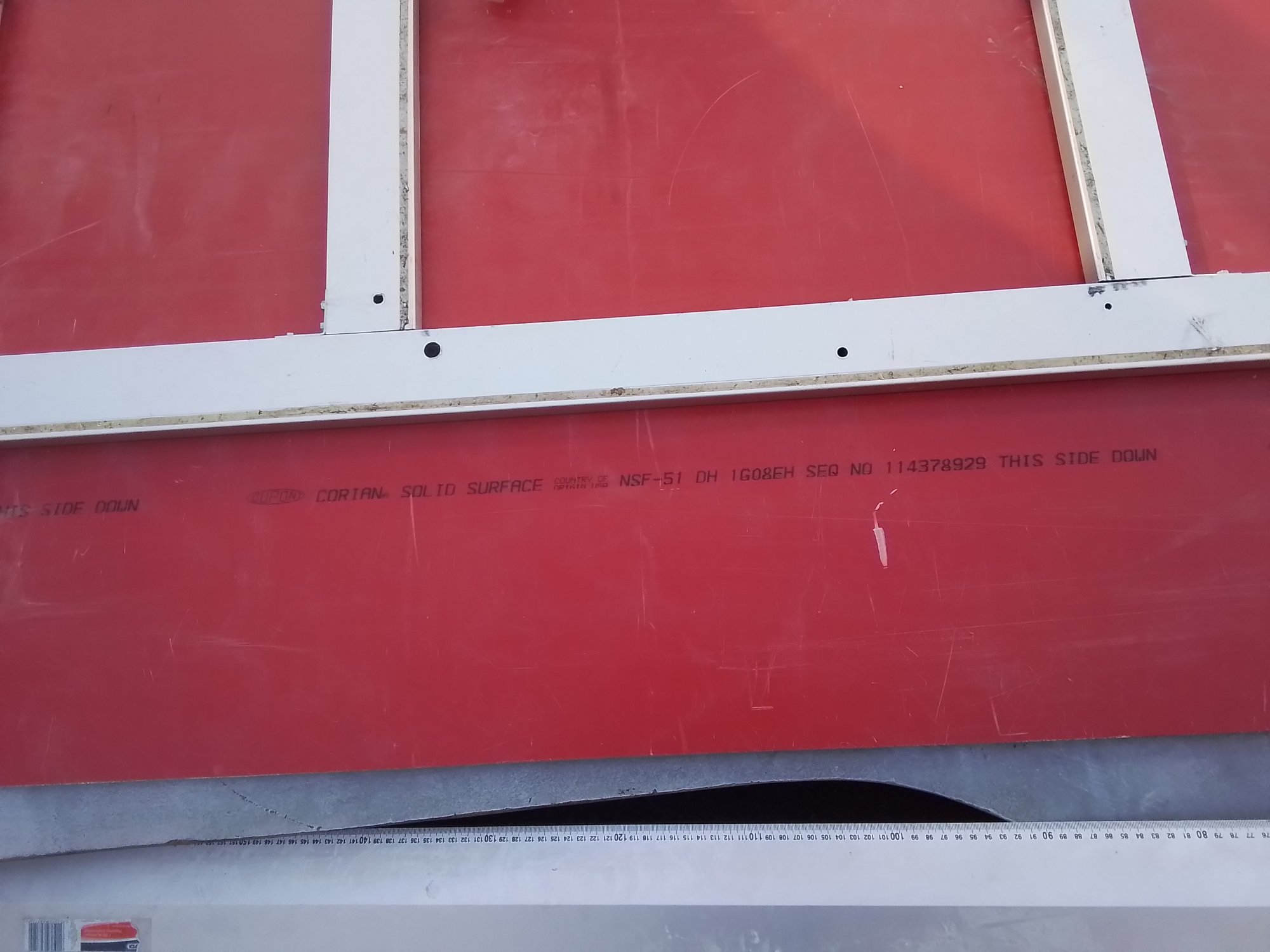

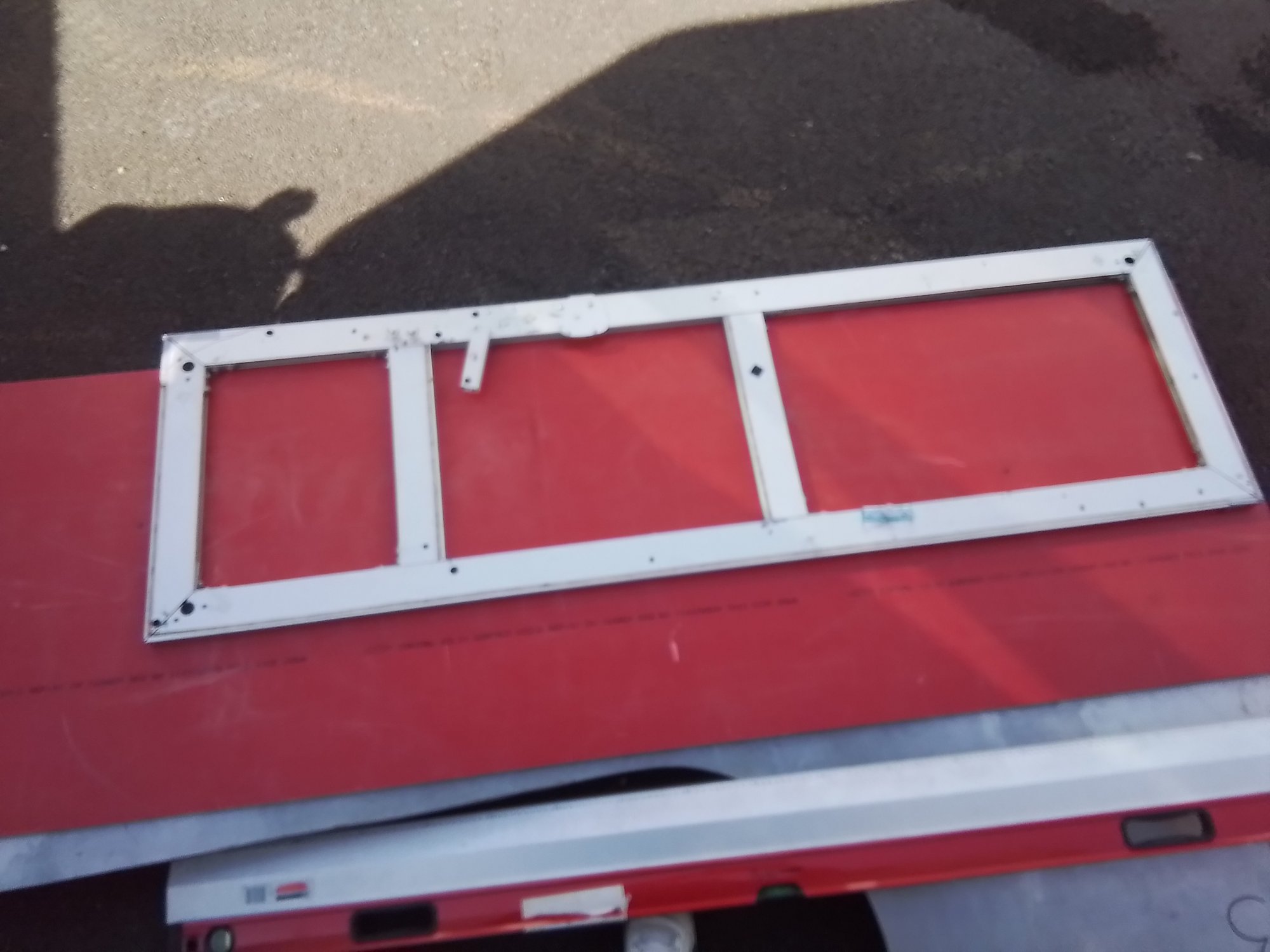

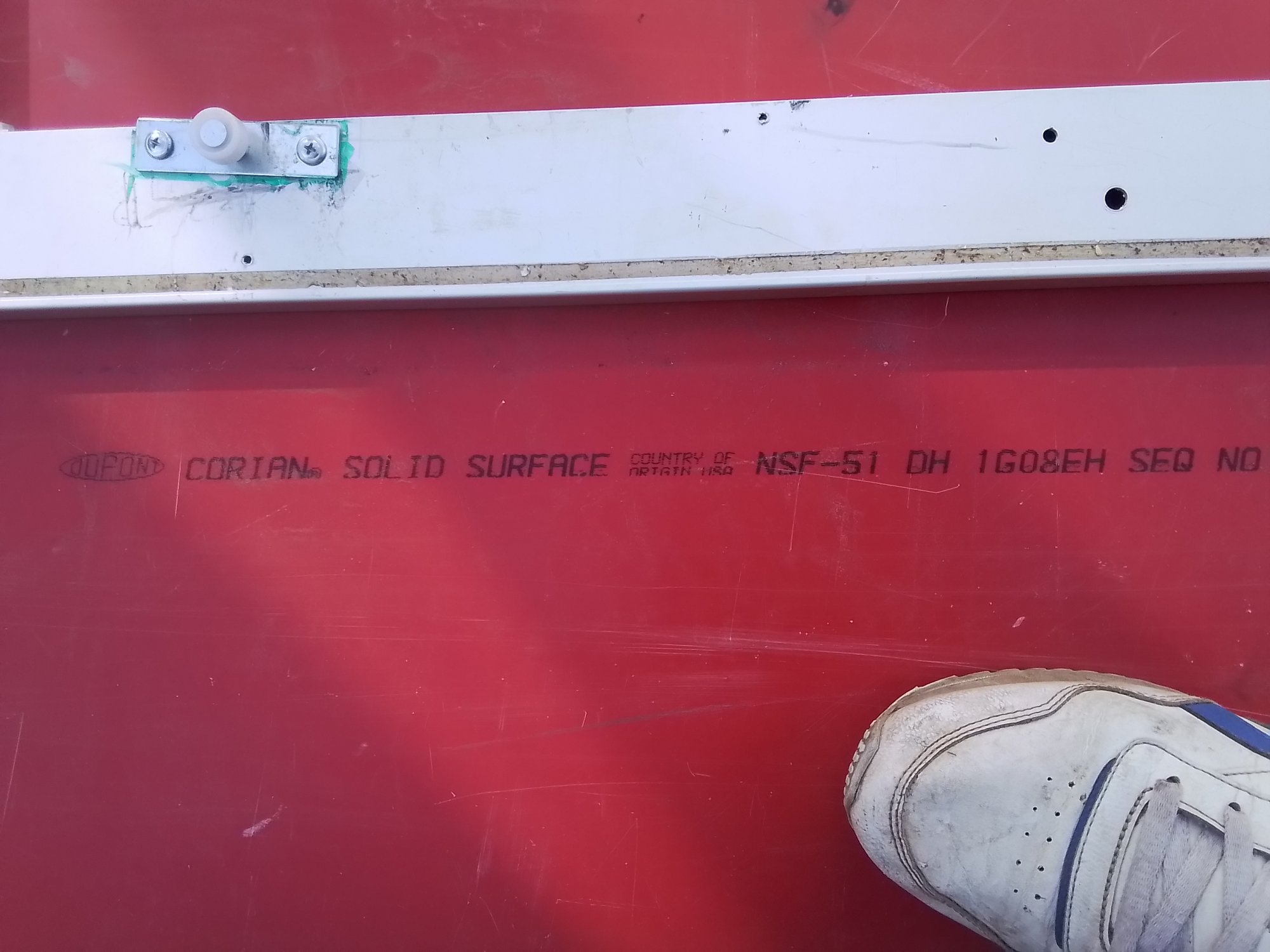

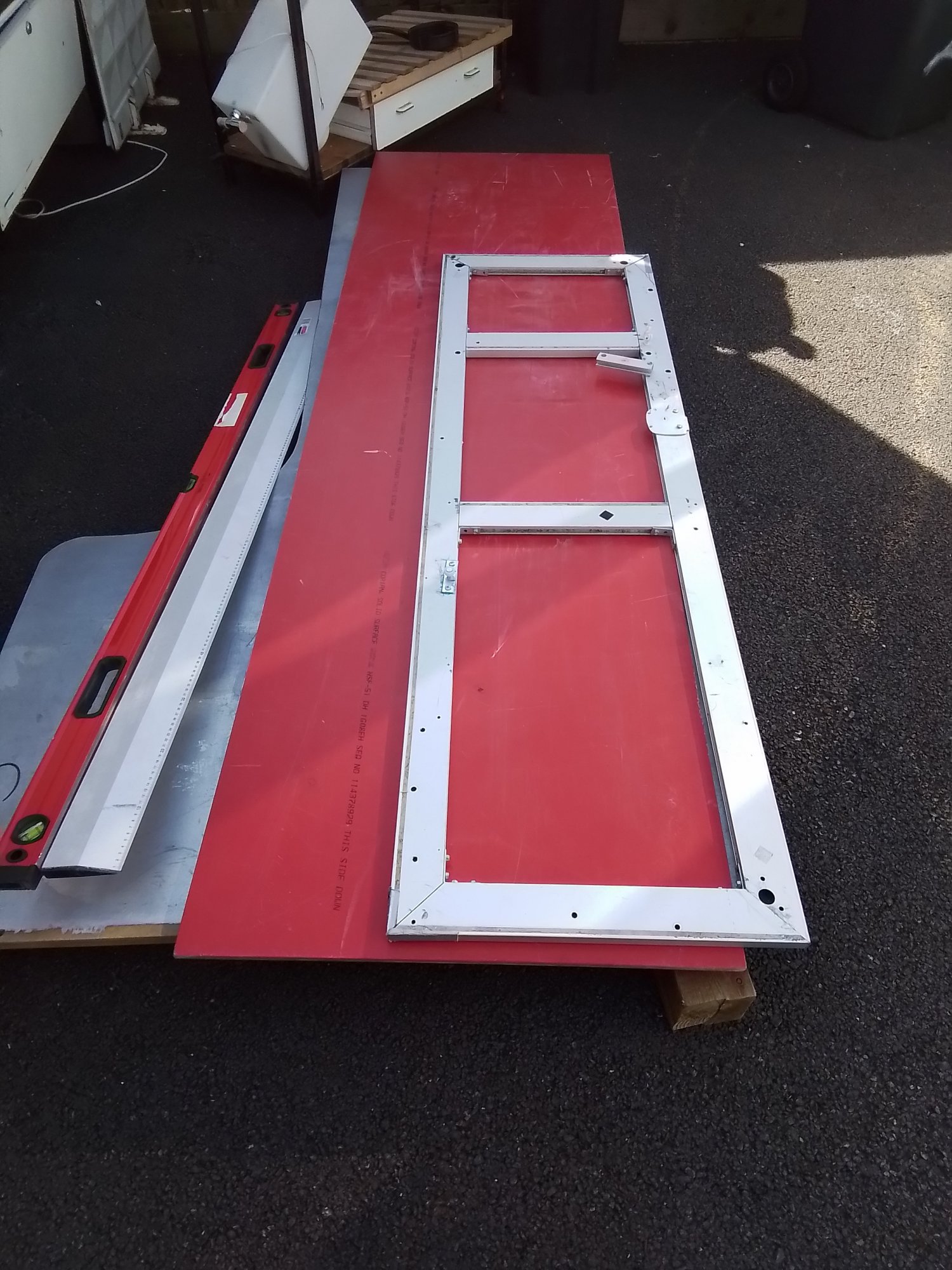

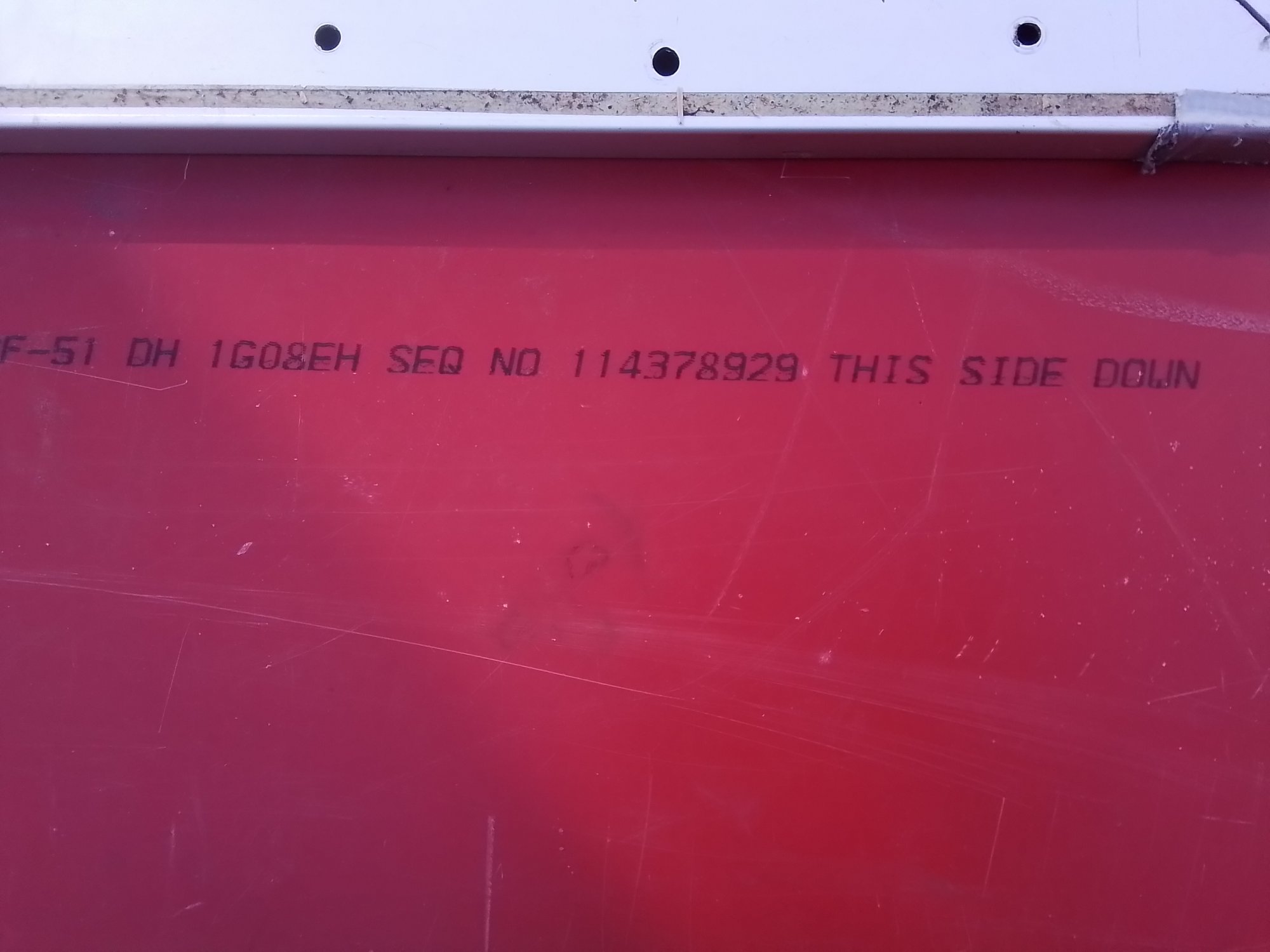

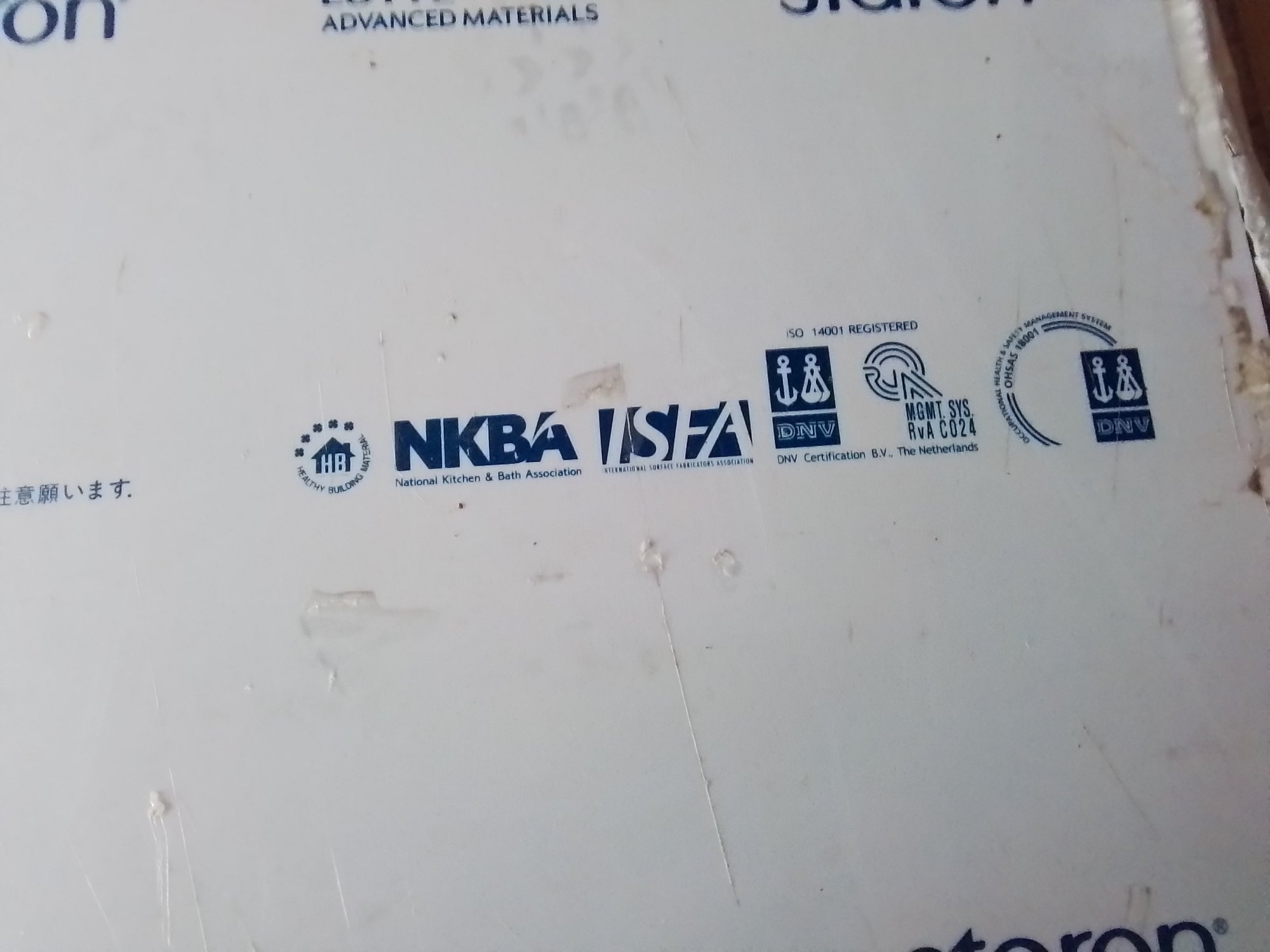

I got 2 slabs it will need sanding as it is recycled

I got two slabs



[merl]

I got 2 slabs it will need sanding as it is recycled


View attachment 130308View attachment 130309View attachment 130310View attachment 130311View attachment 130312View attachment 130313View attachment 130314View attachment 130315View attachment 130316View attachment 130317I got two slabs

Yeh that's Corian type material, it's actually pretty easy to cut, softer than both solid laminate and quartz.
The diamond bits will work but carbide are ok too.
Personally I'd only ever do cutouts that have rounded corners because a sharp internal corner gives a weak point that's likely to crack in future especially considering the twisting and vibration it'll be subjected to in a MH.
The effect downed several De Havilland Comets before they rounded off the corners of the windows.



[1 Cup]

Yep rounded corners steve .
Fixing and snik should be here by Thurs ! Friday latest.

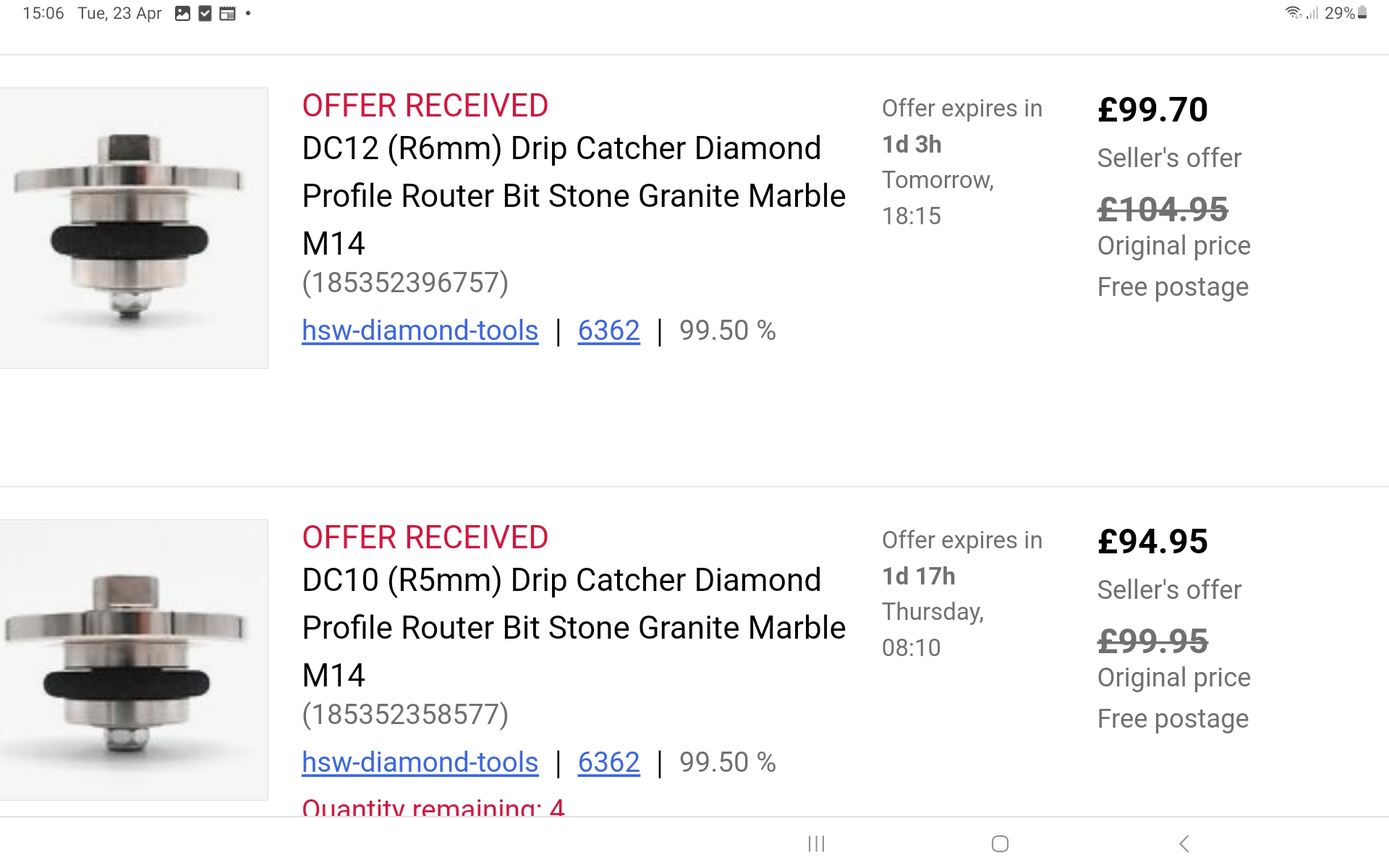

This is drip cutter



[st3v3]

Yep rounded corners steve .
Fixing and snik should be here by Thurs ! Friday latest.

This is drip cutter

View attachment 130319

I'm not sure I'd bother with that...



[n brown]

how does drip cutter work ? and why diamond , corian isn'that hard is it ?



[st3v3]

how does drip cutter work ? and why diamond , corian isn'that hard is it ?

Takes a little half moon out the bottom of the worktop.


Check me sounding like an expert lol. Cheers goooooogle



[1 Cup]

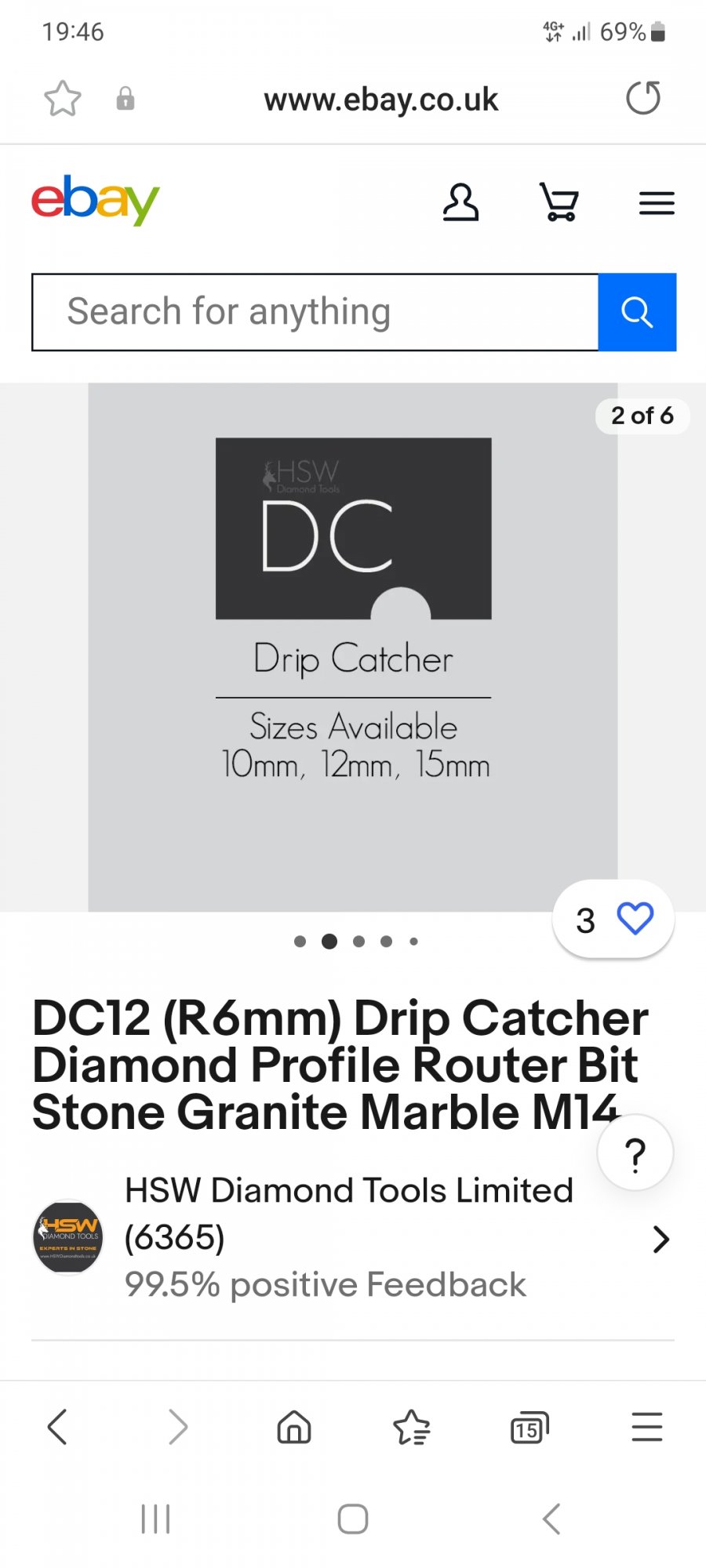

Takes a little half moon out the bottom of the worktop.


Check me sounding like an expert lol. Cheers goooooogle

View attachment 130331

£99 with discount. Item = DC12



[1 Cup]

As I have no cupboards to save weight ! the drip cutter stops the water running across the under neath worktop think of condensation running across a ceiling.

You could be right but I'm using / cutting corian for the first time. If wood accessories work all good ! The diamond was a option we have now passed on. I hope metal bits and blades will be a full back.
