Split Charge Relay Location ?
- Thread starter Wooie1958
- Start date
Wooie1958
Full Member
- Posts
- 16,217
- Likes
- 15,508

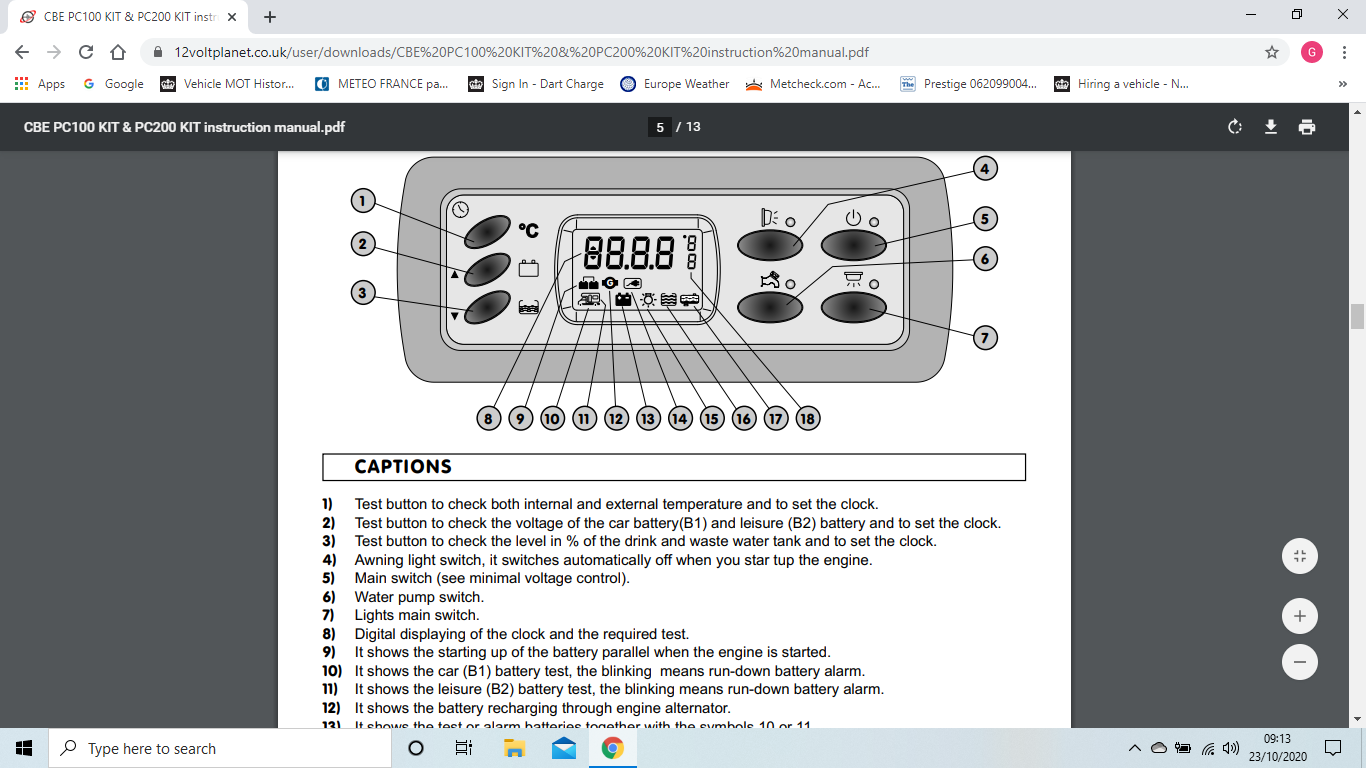

It seems to be intermittant, the 2 symbols i`ve lost are 9, Battery Parallel and 12, Alternator charging when the engine is running.

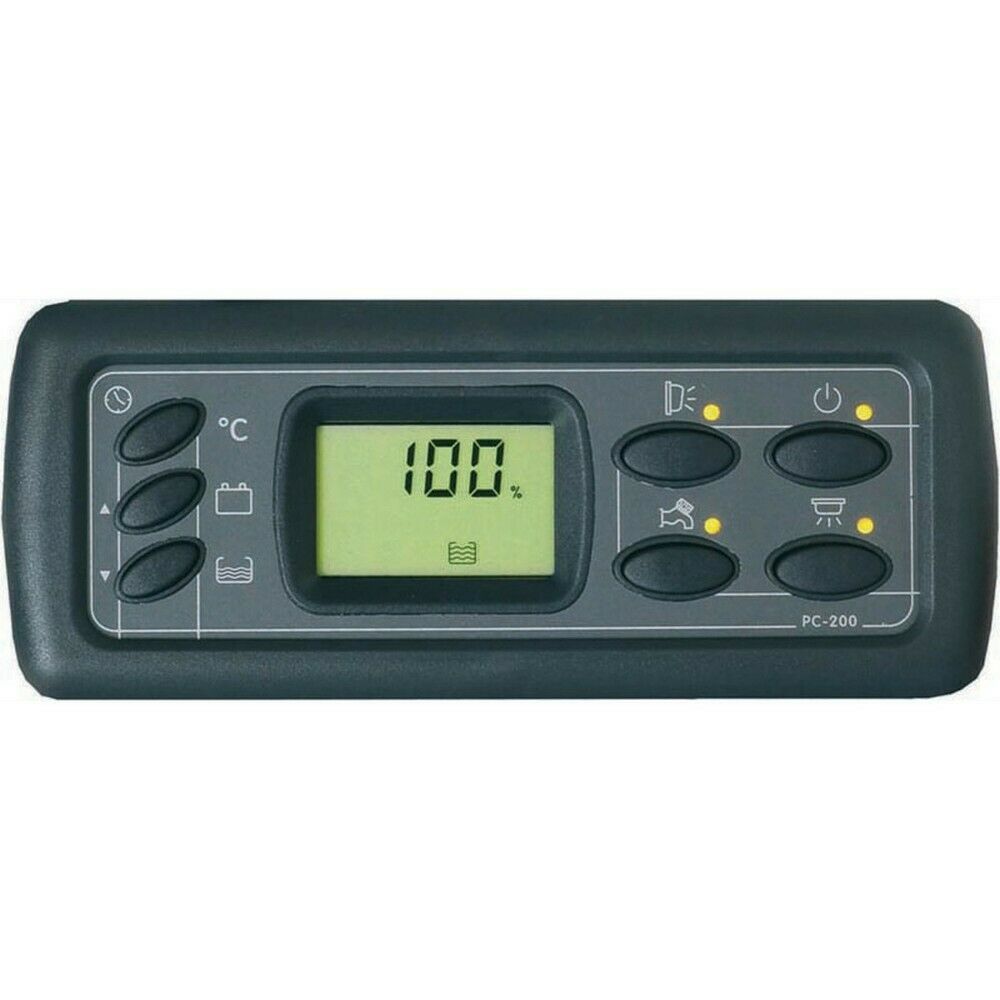

The panel does a self test every time you start it up like a lot of electronic devices do to prove that all the symbols are working however ......................
When the engine is running both of these symbols are normally lit, now they do not light.
Sometimes when i turn the panel off and back on again one or the other or both very briefly flash but then go straight out whilst the other symbols stay lit for approx 2 seconds and then go out and then only the time is shown until you press one of the test buttons 1, 2, or 3 to check a function.
1 outside / inside temperature works fine.
2 battery check, press once and it`s for the leisure batteries and shows resting volts and charging volts when on EHU but stays on resting volts when the engine is running, press again and it`s for the engine battery works fine and show resting volts or charging volts when on EHU or engine running.
3 water tanks and has not worked properly since we bought the motorhome and i gave up taking in back in to get fixed. normally showing 100%
4 outside light is only turned on when needed, works fine.
6 water pump and 7 interior lights are left turned on all of the time, works fine.
5 panel on / off and speaks for itself.
In the coming up 13 years we`ve owned the motorhome from new the electrics ( apart from the water tank levels ) have worked perfectly.
The panel does a self test every time you start it up like a lot of electronic devices do to prove that all the symbols are working however ......................
When the engine is running both of these symbols are normally lit, now they do not light.
Sometimes when i turn the panel off and back on again one or the other or both very briefly flash but then go straight out whilst the other symbols stay lit for approx 2 seconds and then go out and then only the time is shown until you press one of the test buttons 1, 2, or 3 to check a function.
1 outside / inside temperature works fine.
2 battery check, press once and it`s for the leisure batteries and shows resting volts and charging volts when on EHU but stays on resting volts when the engine is running, press again and it`s for the engine battery works fine and show resting volts or charging volts when on EHU or engine running.
3 water tanks and has not worked properly since we bought the motorhome and i gave up taking in back in to get fixed. normally showing 100%
4 outside light is only turned on when needed, works fine.
6 water pump and 7 interior lights are left turned on all of the time, works fine.
5 panel on / off and speaks for itself.
In the coming up 13 years we`ve owned the motorhome from new the electrics ( apart from the water tank levels ) have worked perfectly.
mfw
Full Member
- Posts
- 1,331
- Likes
- 1,815
Dont know how it powers the internal clock but looking at the back of board on the internet cant see battery either - if you can get onto one of the european forums using google translate you might find something in there which might help if i can find something i'll put it on here for you
mistericeman
Full Member
- Posts
- 4,901
- Likes
- 11,238
AllanD
Full Member
- Posts
- 266
- Likes
- 294
Hi Wooie,
On a van I had a few years back (Fiat Ducato PVC) There was a D+ relay and a Battery Auto relay positioned near the bottom of the drivers side B pillar according to a drawing I had for the electrical system. I never saw them, just spotted this when troubleshooting something else, so don't know what covers needed to be removed for access. I suspect the plastic cover at the bottom of the B pillar or the cover within the footwell will need taking off, might be worth a look.
Hope this helps.
On a van I had a few years back (Fiat Ducato PVC) There was a D+ relay and a Battery Auto relay positioned near the bottom of the drivers side B pillar according to a drawing I had for the electrical system. I never saw them, just spotted this when troubleshooting something else, so don't know what covers needed to be removed for access. I suspect the plastic cover at the bottom of the B pillar or the cover within the footwell will need taking off, might be worth a look.
Hope this helps.
Wooie1958
Full Member
- Posts
- 16,217
- Likes
- 15,508
Thank you everyone for the help and now Apuljack Engineering have replied to my email.
They agree it more than likely a problem with the split charge relay circuits given the detailed problems i have given them.
They are offering a repair for a fixed price with 12 months warranty
Quote :-
We offer a fixed price repair service for these items, for £220 (exVAT and shipping). This cost includes all spares and labour to fully investigate all faults with the system, repair the faults and then test the system to confirm all is working as it should. Work will take approximately 1-2 weeks to complete and is covered by a 12 month warranty.
I`ll see what the mobile electrician says next week then take it from there.
They agree it more than likely a problem with the split charge relay circuits given the detailed problems i have given them.
They are offering a repair for a fixed price with 12 months warranty
Quote :-
We offer a fixed price repair service for these items, for £220 (exVAT and shipping). This cost includes all spares and labour to fully investigate all faults with the system, repair the faults and then test the system to confirm all is working as it should. Work will take approximately 1-2 weeks to complete and is covered by a 12 month warranty.
I`ll see what the mobile electrician says next week then take it from there.
Last edited:
wildebus
Full Member
- Posts
- 7,370
- Likes
- 11,132
One thing I would want to know ... Does the 12 Month Warranty cover just the repair they do (so if the same fault reoccurs)? Or does the £220 (+VAT and shipping) you pay cover a general health check on the unit and a full warranty of the entire unit?
The cost at £264 is not inconsiderable. I don't know if that unit is much more complicated than a typical Sargent Power Supply Distribution unit for example?
Those can be sent back to Sargent for a a fixed price repair of £145 (inc VAT). That seems a much more reasonable kind of price and along the lines of what I would have expected.
Hopefully the chap who comes round next week can sort it out as it sounds like it needs a fivers worth of parts and 5 minutes with a soldering iron.
Wooie1958
Full Member
- Posts
- 16,217
- Likes
- 15,508
The guy who came to look at it basically didn`t know hios arse from his elbow and i told him as much so off he went without payment.
The link in my post #6 although it looks the same isn`t, mine has a model number of 20518 and has 16 fuses in it and the one in the link has a model number 20510 and only has 15 fuses in it and they are in a different postion to mine so clearly the multi-plugs will not match up either.
The whole DS520 distribution board and the PC-200 control panel has now been removed and will be sent to Apuljack Engineering for refurbishment.
Once back i`ll report on how things went and the final price although they have said it is a fixed price fix ................... we`ll see as i have an email confirming the price.
The link in my post #6 although it looks the same isn`t, mine has a model number of 20518 and has 16 fuses in it and the one in the link has a model number 20510 and only has 15 fuses in it and they are in a different postion to mine so clearly the multi-plugs will not match up either.
The whole DS520 distribution board and the PC-200 control panel has now been removed and will be sent to Apuljack Engineering for refurbishment.
Once back i`ll report on how things went and the final price although they have said it is a fixed price fix ................... we`ll see as i have an email confirming the price.
wildebus
Full Member
- Posts
- 7,370
- Likes
- 11,132
Put little dabs of tippex on the various components just to see out of curiosity what they replace. Would be interesting if more than that one black square component gets changed
Wooie1958
Full Member
- Posts
- 16,217
- Likes
- 15,508
Put little dabs of tippex on the various components just to see out of curiosity what they replace. Would be interesting if more than that one black square component gets changed
Already thought of that Boss
me being the suspicious, trust no one type of person If the one in the link i put on was the right one £176.15 + P&P is a damned sight cheaper that the thick end of £300 all in that this is going to cost
mfw
Full Member
- Posts
- 1,331
- Likes
- 1,815
You may have got VAT to go on that priceAlready thought of that Boss
If the one in the link i put on was the right one £176.15 + P&P is a damned sight cheaper that the thick end of £300 all in that this is going to cost
They repair whatever is needed and give a years warranty pretty sure it covers other parts if not replaced within the year anyway
You will probably find they want the distribution board and the control unit - that is what happened when i sent my cbe bits off for repair
