Hi NZ,I've just started using Ecoal50 from B&Q,they do 3 X 10kg bags for £16,I use wood for quick heat in the evenings,then put a couple of small shovel fulls in before bed,turn the draw right down and it gives a nice slow heat until about lunchtime the next day. I'm really impressed with the stuff,the only downside is it produces quite a bit of ash but I feel it's worth it when I get up with just a t shirt on in the mornings. I'm just heading to Kent this week and I'll stock up on a load of willow logs that I've had stashed for nearly three years.
The log burner is now the dogs favouritist thing!
Hi ya Matey,
Looking good that does, any oth pics of it in place ?.
How big is the actual Firebox on your stove?.
How Hot does the actual Stove get When banked up ?.

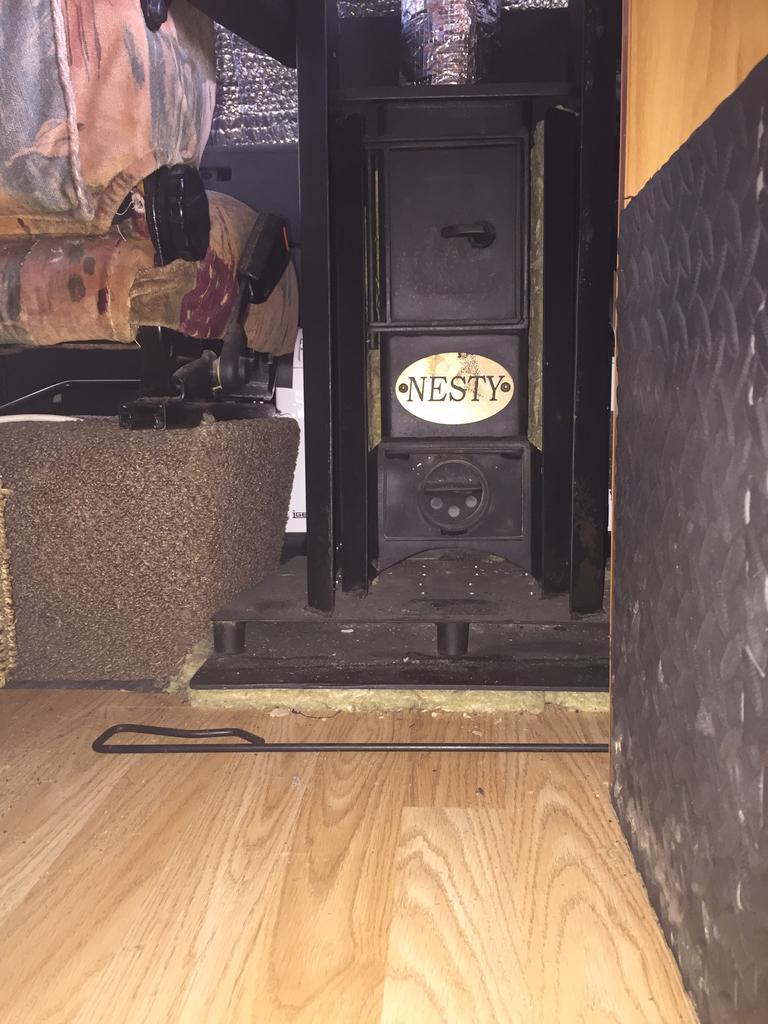

My stove only has a fire box of 130mm by about 120mm internally & likes to burn at around the 120° or touching the 180°C mark when banked. The closest objects to the actual stove (The Seats) only just get ‘Hand Warm’ though as I have it in a ‘Heat Shield Cabinet’ with Fire Break.
![6E17F0B7-DDB4-4D91-9273-019F4B10390D.jpg 6E17F0B7-DDB4-4D91-9273-019F4B10390D.jpg](https://wildcamping.co.uk/data/attachments/45/45148-27ab1035d21d12baf5899923295b72e4.jpg)
![2D2037CE-91A6-41F7-94BF-6B3DAECB8417.jpg 2D2037CE-91A6-41F7-94BF-6B3DAECB8417.jpg](https://wildcamping.co.uk/data/attachments/44/44888-83c1a609d8dd37968fcf243a7b4062eb.jpg)
![A2352289-0CB5-4085-B6AE-64CE057FCC8E.jpg A2352289-0CB5-4085-B6AE-64CE057FCC8E.jpg](https://wildcamping.co.uk/data/attachments/45/45150-cf73bb28028978977e095eaf274c7165.jpg)

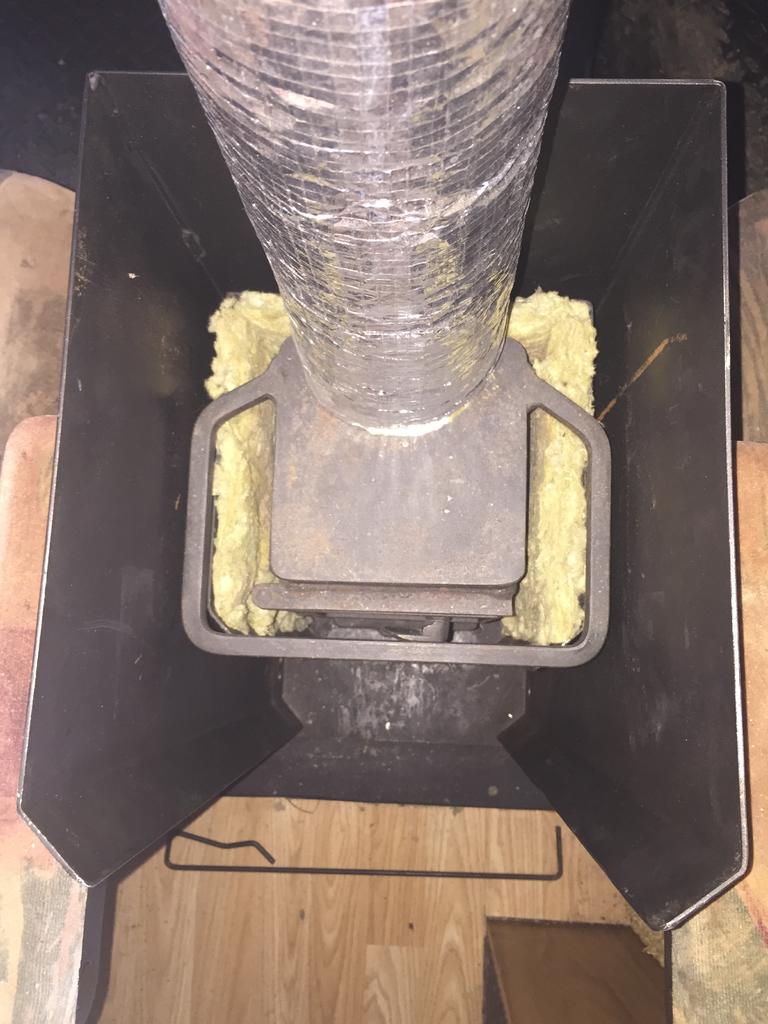

Can’t see it very clearly on pic, But the cabinet is actually open Toped & Open Fronted as you would expect,

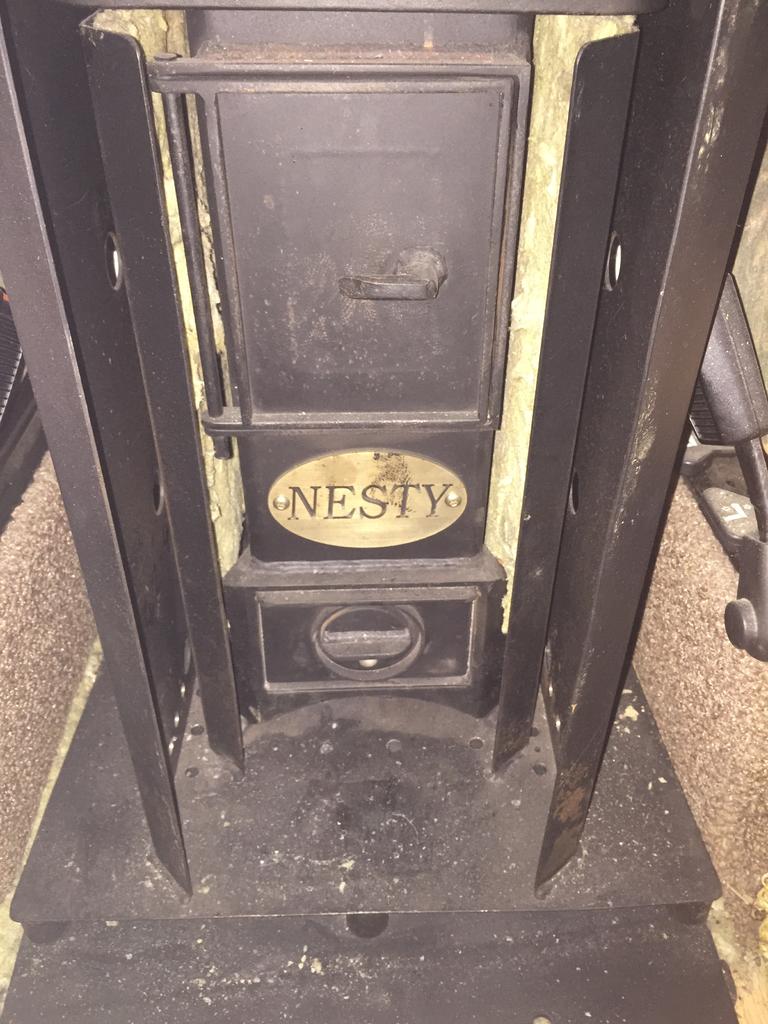

The Base has a 60mm Air gap from bottom of Ash Draw down to the 1st Metal Heat shield base that it sits on & has Air holes in to promote cooling this then Protrudes 150mm forward of Stove face to act as Catcher. Then it has a 2nd 25mm Air Gap to 2nd Metal solid Grate that come even further forward of the 1st Base Heat Shield by another 50mm as a 2nd catcher (so 200mm from face of Stove). Then the whole lot sits on 25mm of Rockwool Firebreak to Floor.
Each side has a 20mm Air Gap From Stove Side Walls to the 25mm Rockwool Firebreak Then this is backed by the 1st Metal Heat Shied, Then it has a 2nd 20mm Air Gap to 2nd Metal Heat Shield, Then 80mm Air Gap to Seat.

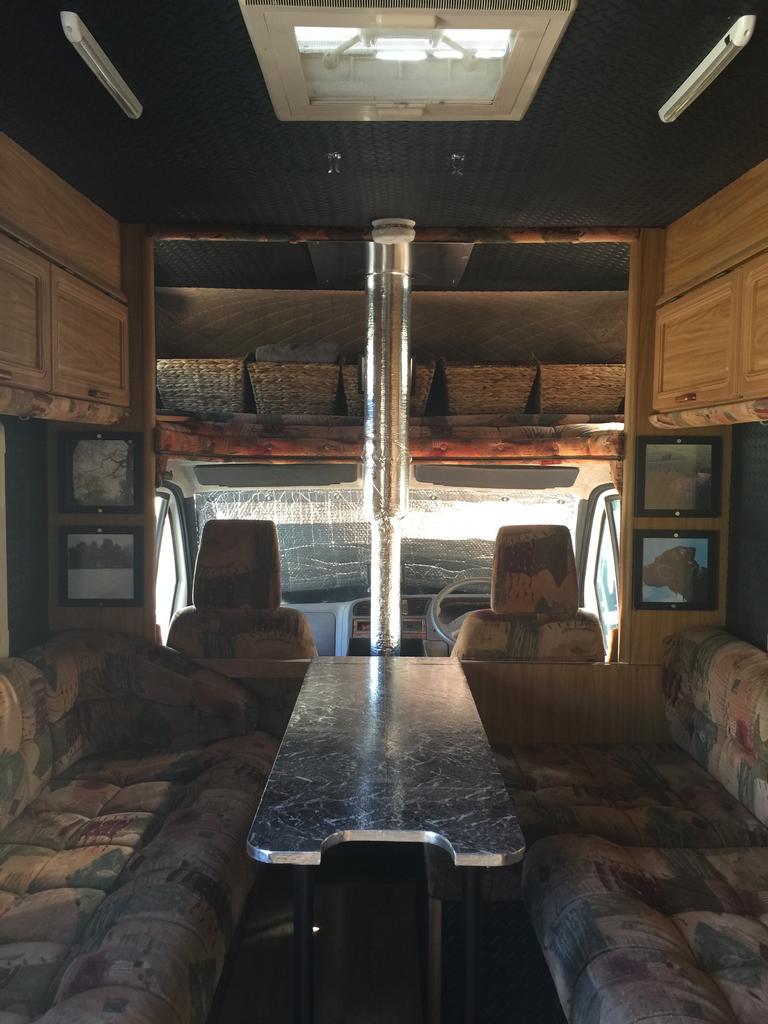

The One piece Continuous Flu has 25mm Foil faced Rockwool Flu Insulation up its entire length of 9ft, The top 5ft has been Double insulated (50mm) right up into the Silicon Roof Coller exit cone.
![BD9D6C65-E2A5-4B57-AB2E-1BED09F61461.jpg BD9D6C65-E2A5-4B57-AB2E-1BED09F61461.jpg](https://wildcamping.co.uk/data/attachments/46/46139-27232ab7c8ca3450a9bf04d22a2d975d.jpg)
Works well !.
I will try this Ecol50 stuff, Thanks.
BTW That ISNT Ash you can see in the pictures, it’s Fall out from some Insulation I was fitting to above the stove to cab area back in the Summer months
