Hymer Electrics

alwaysared

alwaysared

Full Member
Posts
1,447
Likes
1,820
We are sitting here minding our own business and the 12v electrics went off :( It's only the Hymer side (Eletrablock feed), my own 12v stuff still works. I'm assuming it's a fuse?
Anyhow there is a 40 amp inline fuse on a brown wire connected to the leisure batteries which is okay, I know that Hymer are famous for putting fuses all over the place so can anyone give me some clues as to where they could be? It's a Hymer T574 Classic coachbuilt. It's too dark now so I'll be looking in the morning but any help would be appreciated. Does anyone maybe have a wiring diagram for the Elektroblocks? I have the manual that shows what the fuses are for along the front of it but that's all, I'd just like to understand it a bit more. :unsure:

Regards,
Del

Derek tezza33 has a good bit o knowledge on them but he gave me udo lang I think his name was at hymer
speaks good English if you get stuck
I will try and get the number out my book for you if stuck
I will go through my stuff the now and see if I can come up with something

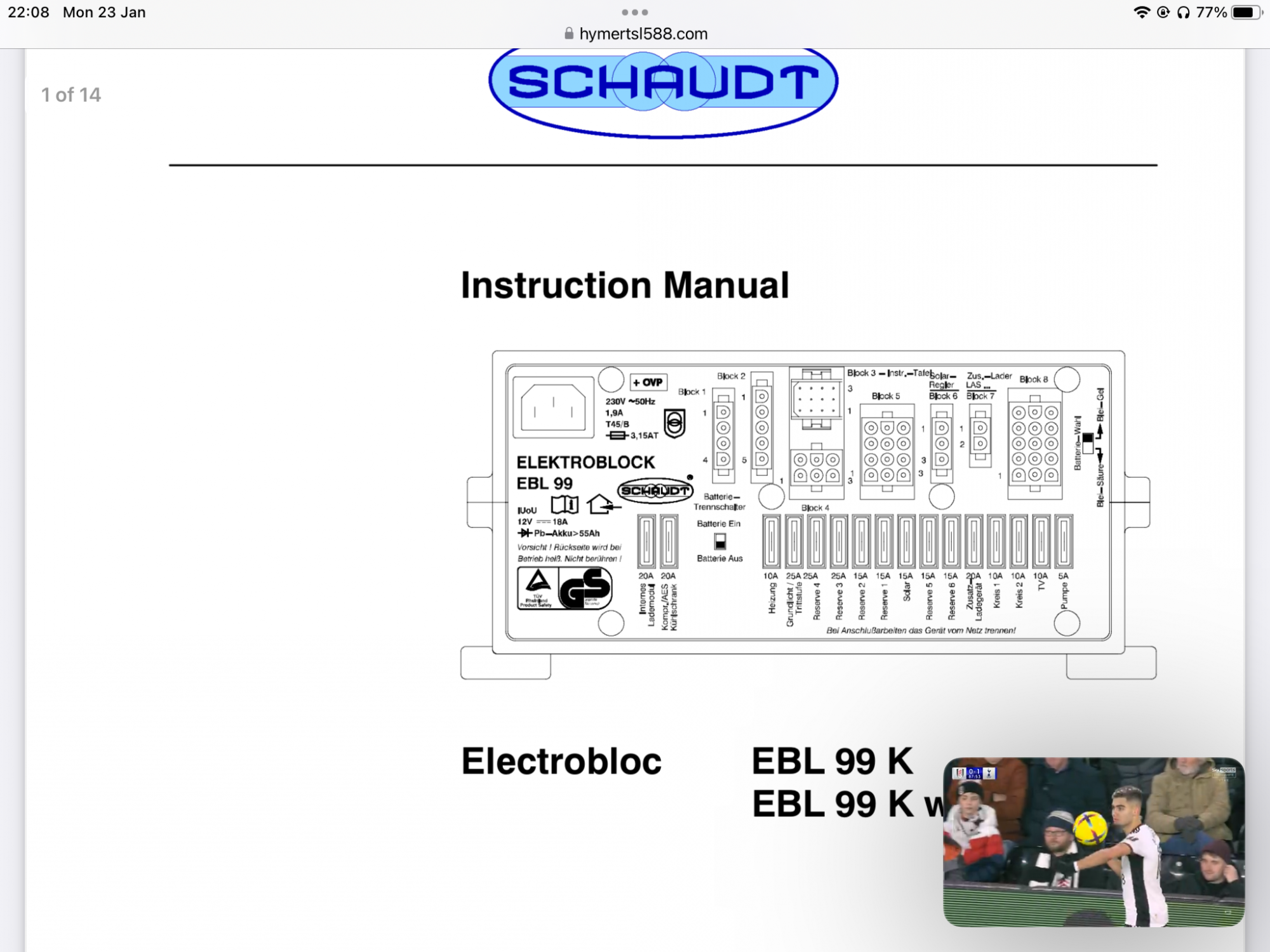

Derek Google your model and electroblok fuses this comes up schaudt blok


Attachments

  • 519F2AE7-25FF-4C1E-B708-C783C7DE3DF0.png
    963.9 KB · Views: 92
There are two fuses near the leisure battery, on mine it is a 30 amp and a 2 amp

EBL episode 2

If you read my last thread on this subject you will be aware that my fridge has failed on 12v. Refresher from episode 1 - fridge switching off when engine started Van taken to local Motorhome workshop for repair Returned with absolutely no habitation electrics...
wildcamping.co.uk wildcamping.co.uk

The laird said:
Derek Google your model and electroblok fuses this comes up schaudt blok
Click to expand...
I have this diagram but those fuses (on mine at least) only control the outputs and I need to find the fuse or fuses for the feed to it, the control panel isn't working above the door, it soes show the engine battery voltage but nothing else :( I do have Tezza'as number., I'll call him tomorrow (y)

Regards,
Del

Udo Lang is very helpful

Udo Lang, technical support
Schaudt GmbH Elektrotechnik & Apparatebau
Planckstr. 8 - 88677 Markdorf - Germany
email: udo.lang@schaudt-gmbh.de


Tel. +49 7544 9577-70 Fax +49 - 7544 - 9577-29

alwaysared said:
I have this diagram but those fuses (on mine at least) only control the outputs and I need to find the fuse or fuses for the feed to it, the control panel isn't working above the door,

Regards,
Del
Click to expand...
I had a similar problem with mine and it was a relay in the electroblok, there are two identical large relays in there, one of these controls the 12v side, they are not available to buy but I managed to talk Udo into sending me two, if that is your problem I still have a spare somewhere because I only changed the one, first though check the fuses close to the habitation batteries the 2 amp fuse controls the 12v switch, even if it looks OK a little bit of corrosion will stop it working, the other fuse should be 50 amp (although mine is only 30 amp)
here is a post from another thread that shows the relays

12 volt problem

The 12 volt side has developed a problem. Pressing the 12V button on the panel does not light up the 12V green indicator LED so I’m not getting any lights or water pumps. The panel still lights up the yellow EHU indicator when connected to EHU and I get 230v inside the van. Pressing down on...
wildcamping.co.uk wildcamping.co.uk

When I contacted Udo Lang to try to purchase the relays Del he replied

Udo Lang said:
I´m sorry we don´t delivery any items from inside the EBL to our customers for safety reasons.

Please check if the sensor-wire fuse (2A), close the the battery is blown off.
If so, you can not switch the users on from the panel.
Also you might not be able to check the battery-voltage on the leisure battery via the panel.

The fuse is fixed close to the leisure battery. There must be a 2A and a 50A fuse.

In case the fuse is ok and the battery has more than 8V, the EBL might be defect and you can send the unit to us for repair:

Click to expand...

Tezza33 said:
When I contacted Udo Lang to try to purchase the relays Del he replied
Code:
Udo Lang said:
I´m sorry we don´t delivery any items from inside the EBL to our customers for safety reasons.

Please check if the sensor-wire fuse (2A), close the the battery is blown off.
If so, you can not switch the users on from the panel.
Also you might not be able to check the battery-voltage on the leisure battery via the panel.

The fuse is fixed close to the leisure battery. There must be a 2A and a 50A fuse.

In case the fuse is ok and the battery has more than 8V, the EBL might be defect and you can send the unit to us for repair:
Click to expand...
I would think it would be possible to buy the relays from a 3rd party. I doubt if Schault actually make special relays. (I think these two are latching relays however?, so a little bit different to a bog-standard relay).

wildebus said:
I would think it would be possible to buy the relays from a 3rd party. I doubt if Schault actually make special relays. (I think these two are latching relays however?, so a little bit different to a bog-standard relay).
Click to expand...
My elektroblok is a EBL99, the relay is a Gruner 17061 704M
You can buy direct from Gruner but you would have to check the numbers on your relay if it is a different model elektroblok, it is easy to remove the EBL and take the cover off, the connections on mine are all multiplugs so easy to unplug and reattach because they are all different shapes and sizes,
I managed to convince Schaudt that I had electrical specialists working for me who were qualified to fit them, it was easier and cheaper than buying from Gruner, I couldn't find any other suppliers at the time

Well I'm still no further with it, I can find the 50amp fuse near the vehicle battery and the same at the leisure battery but I'm damned if I can see a small fuse either end!
The main thing for me is to get the step up before I go to my hospital appointment on Thursday, I've just wired the Truma directly to my own fuse box so that's working which is very important to me, the fridge on the otherhand is a bit of a joke due to the AES it doesn't work on gas without a 12 volt supply so my three way fridge is really a two way fridge so somebody needs to explain what three way fridge is to Dometic or Hymer :unsure: Does anyone have a wiring diagram for the electric step, it seems such a simple thing to me but all logic goes out of the window with Hymer (well German elctronics full stop) There's a switch with three wires on using a meter one is common, one becomes active when you press the switch down and the other one becomes active when you press it up :) so why doesn't work when I put a live to the common? Makes no sense to me 😥. If I wasn't living in it I'd rip the lot out and rewire it sensibly :(

Regards,
Del

On mine Del the 50amp and 2amp fuses at either end are piggy backed to each other so if you find the big one you have found the small one.

Re electric step. If Hymer do the same as Geist did you will have an additional black box containing a PCB and a couple of relays, (think mine is a Toptron 155). I know this because mine has failed and I don’t want to pay the minimum charge to get it sorted.
You can get the wiring diagrams from Thule web site if it’s theirs with various ways of wiring them in.
