Compressor fridge cycling times

trevskoda

Full Member
Posts
26,662
Likes
32,308
Results:

Ambient 22c and 5 available settings on fridge

Setting 4 (-2.5c)

On 3m 30s
Off 2m 45s
On 3m 30s
Off 2m 48s

Temp increase during OFF of 0.1c

Setting 2 (3.3c)

On 2m 39s
Off 2m 49s
On 2m 35s
Off 2m 57s

Temp increase during OFF 0.3c

I have checked the seal all round there is resistance when opening the door. During experiment seal was slightly broken due thermometer cable.

Any thoughts very welcome as running 50% of the time is going to batter my battery
Break out tight ass and buy a small AA++ £70 and a smart inverter.


mistericeman

Full Member
Posts
3,484
Likes
7,772
The fridge is 25 years old, maybe this is the problem. Obviously I have no way of knowing if it has ever been topped up.

As it is sunny today I am doing an experiment with the thermostat
Have you got a make and model?


Tookey

Full Member
Posts
1,995
Likes
3,293
Have you got a make and model?

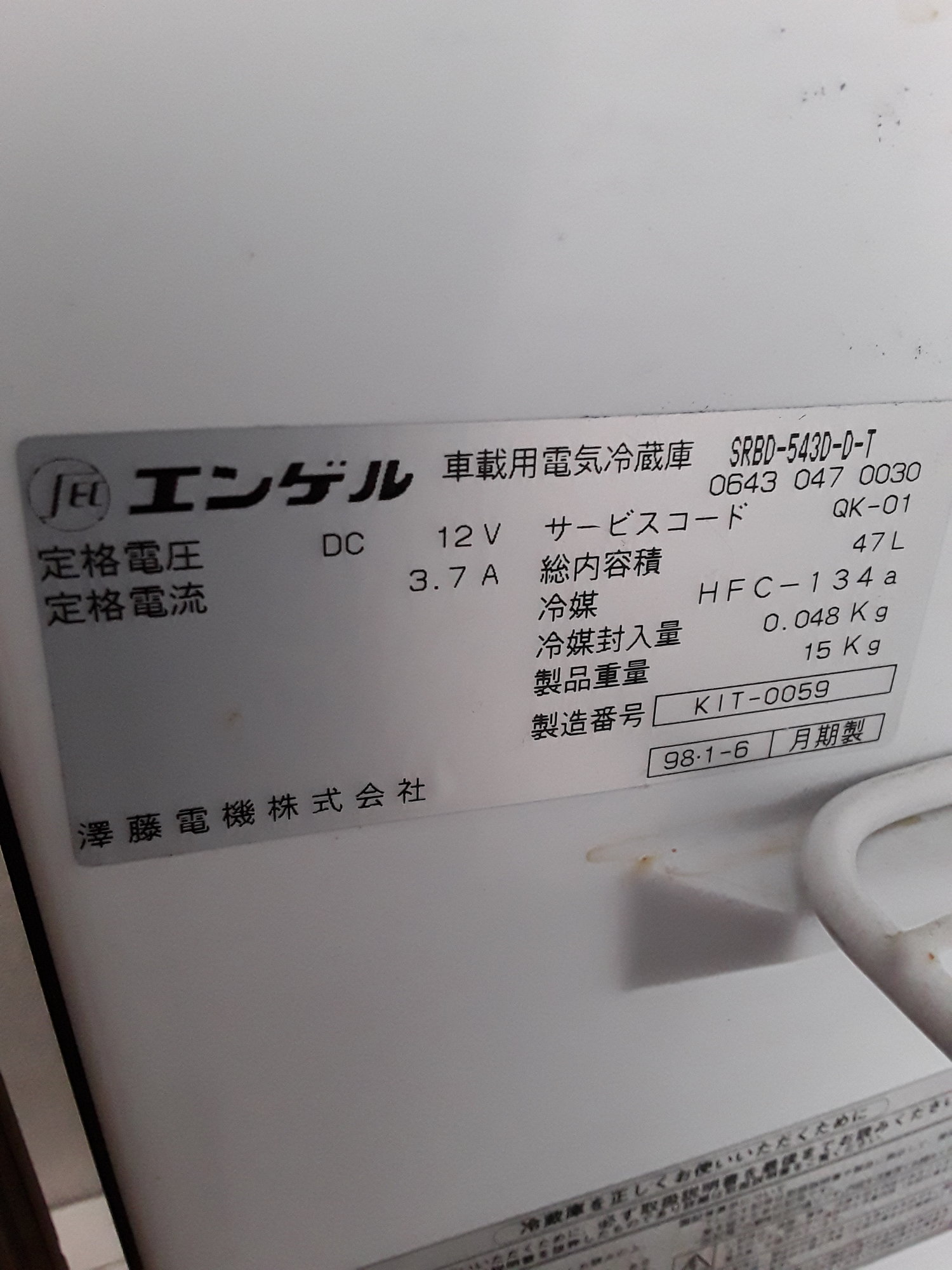

Engel. Sorry but photo is best I can do with regards to model


Last edited:

1 Cup

Full Member
Posts
924
Likes
385
Just chill it's now winter. What about a good shake or is that the other type.
I did like that video about added fans and insulation.
I'm testing mine as it the only item on in the van. So when battery is full for a few days I'll post sc 30 day harvest.


mistericeman

Full Member
Posts
3,484
Likes
7,772
Interestingly it seems you can date Engel fridges by the current the compressor draws...

Decade of Manufacture / Current draw when ON
70's / 6 A
80's / 4.5 A
90's / 3.7 A
2000-on / 2.5 A

IF the unit is achieving the temps you would expect and not struggling to keep cold...
It's possible you have got a thermostat with a particularly tight 'dead band'...

Our comfort cooling aircon systems are usually calibrated to run plus/minus 2 degrees (so controller set to 20 degrees room can get up to 22 degrees before the unit starts cooling and cool down 18 degrees before shutting off.... To prevent the compressor stop/starting continuously.
(not quite so cut and dried now we have inverter (variable speed) compressors)
Server room units/process cooling (close control) are typically +/- 1 degree.


Tookey

Full Member
Posts
1,995
Likes
3,293
Interestingly it seems you can date Engel fridges by the current the compressor draws...

Decade of Manufacture / Current draw when ON
70's / 6 A
80's / 4.5 A
90's / 3.7 A
2000-on / 2.5 A

IF the unit is achieving the temps you would expect and not struggling to keep cold...
It's possible you have got a thermostat with a particularly tight 'dead band'...

Our comfort cooling aircon systems are usually calibrated to run plus/minus 2 degrees (so controller set to 20 degrees room can get up to 22 degrees before the unit starts cooling and cool down 18 degrees before shutting off.... To prevent the compressor stop/starting continuously.
(not quite so cut and dried now we have inverter (variable speed) compressors)
Server room units/process cooling (close control) are typically +/- 1 degree.
Thank you for your interest and help


Tookey

Full Member
Posts
1,995
Likes
3,293

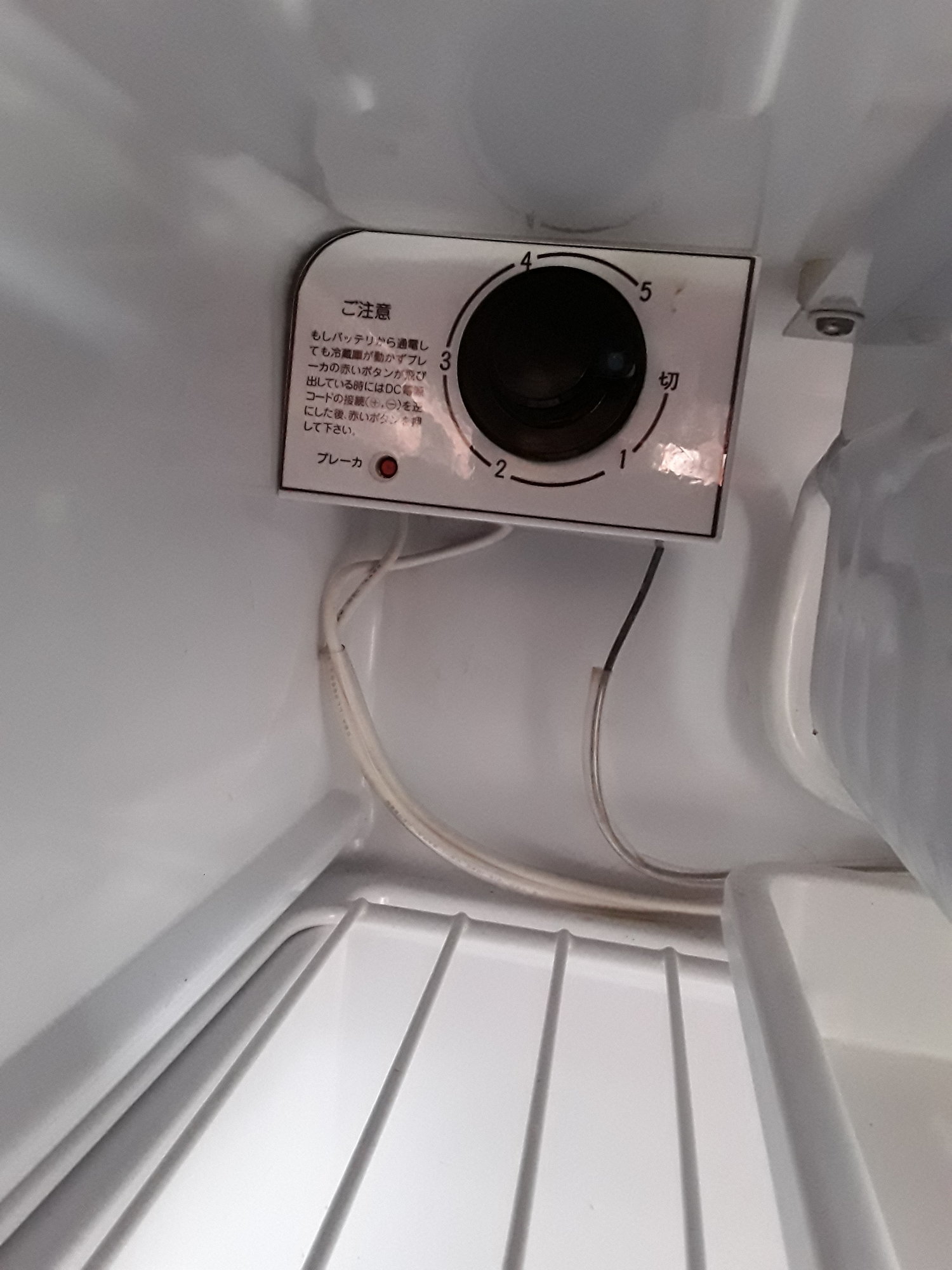

Anyone have any idea what the little red button that looks like a reset button might do?

My Japanese is a bit rusty :sneaky:



davep10000

Full Member
Posts
254
Likes
524
Time to get your google translate app on your phone on to it!
Most likely a reset button though (Its exactly like the one on my house immersion heater overheat reset)
Press it with a pen and see if it works, but would be the first thing to check if your fridge stops.
Cheers from Stratford.
Dave.


1 Cup

Full Member
Posts
924
Likes
385
My fridge has a removable freezer compartment. Is the compressor working harder or is it just the thermostat that control's on and off ?.

What is the running temp of a compressor ? in winter could it be on high setting 5/5 and 70ltrs become a freezer ?.


Tookey

Full Member
Posts
1,995
Likes
3,293
My fridge has a removable freezer compartment. Is the compressor working harder or is it just the thermostat that control's on and off ?.

What is the running temp of a compressor ? in winter could it be on high setting 5/5 and 70ltrs become a freezer ?.
First question; Little unsure what you are asking tbh, are you asking if the compressor is cutting out due to inbuilt protection?

Second question; I don't know, how would I determine this, contact thermometer?

Third question; As setting 4 was maintaining -2.5c then I suggest 5 would indeed would be very low, not like a domestic freezer though


1 Cup

Full Member
Posts
924
Likes
385
-2.5 is good , that will do if I need it over Christmas. For when the lights go off. I'll get more insulation and some fans too. To help
Thanks


1 Cup

Full Member
Posts
924
Likes
385

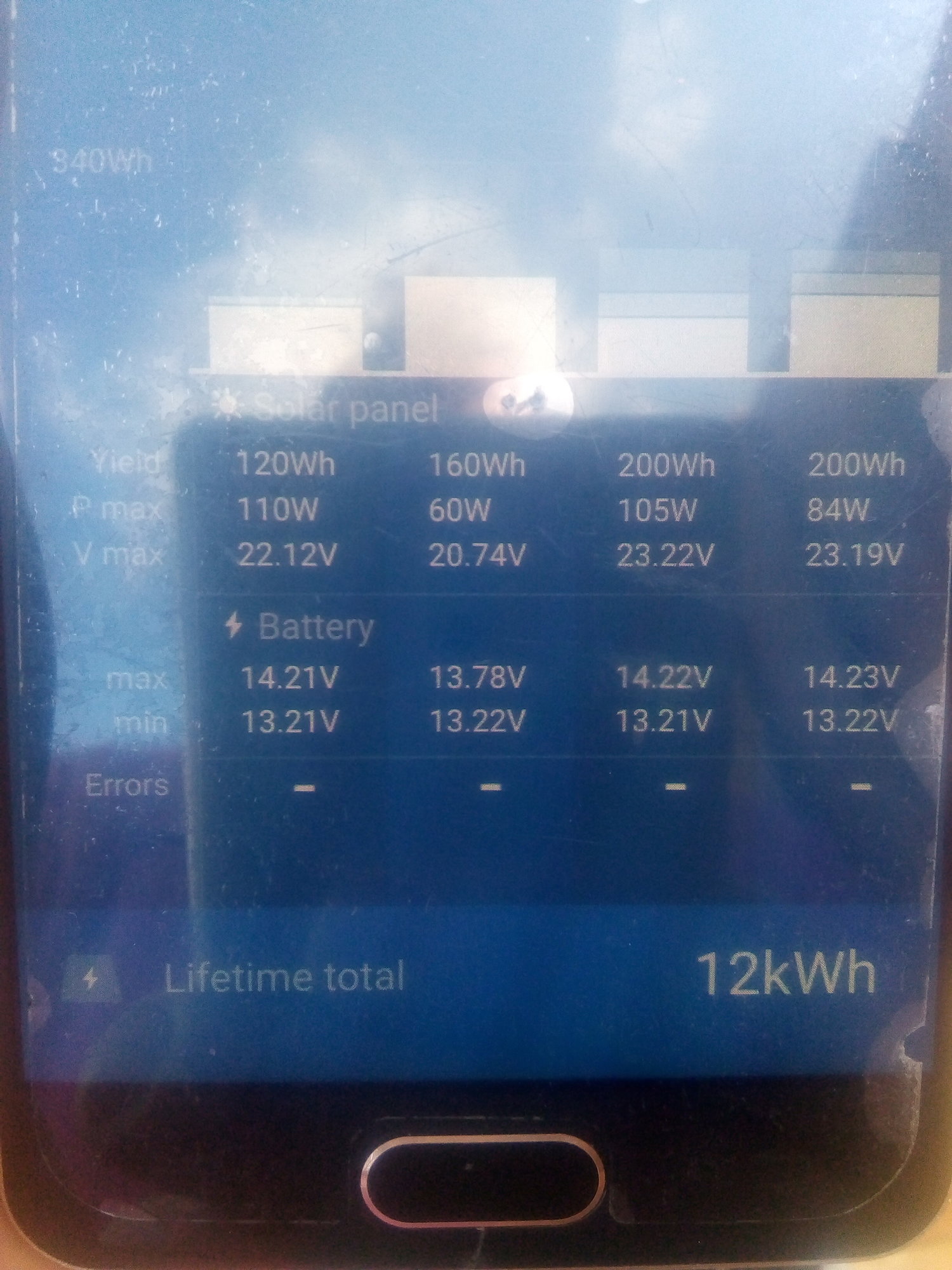

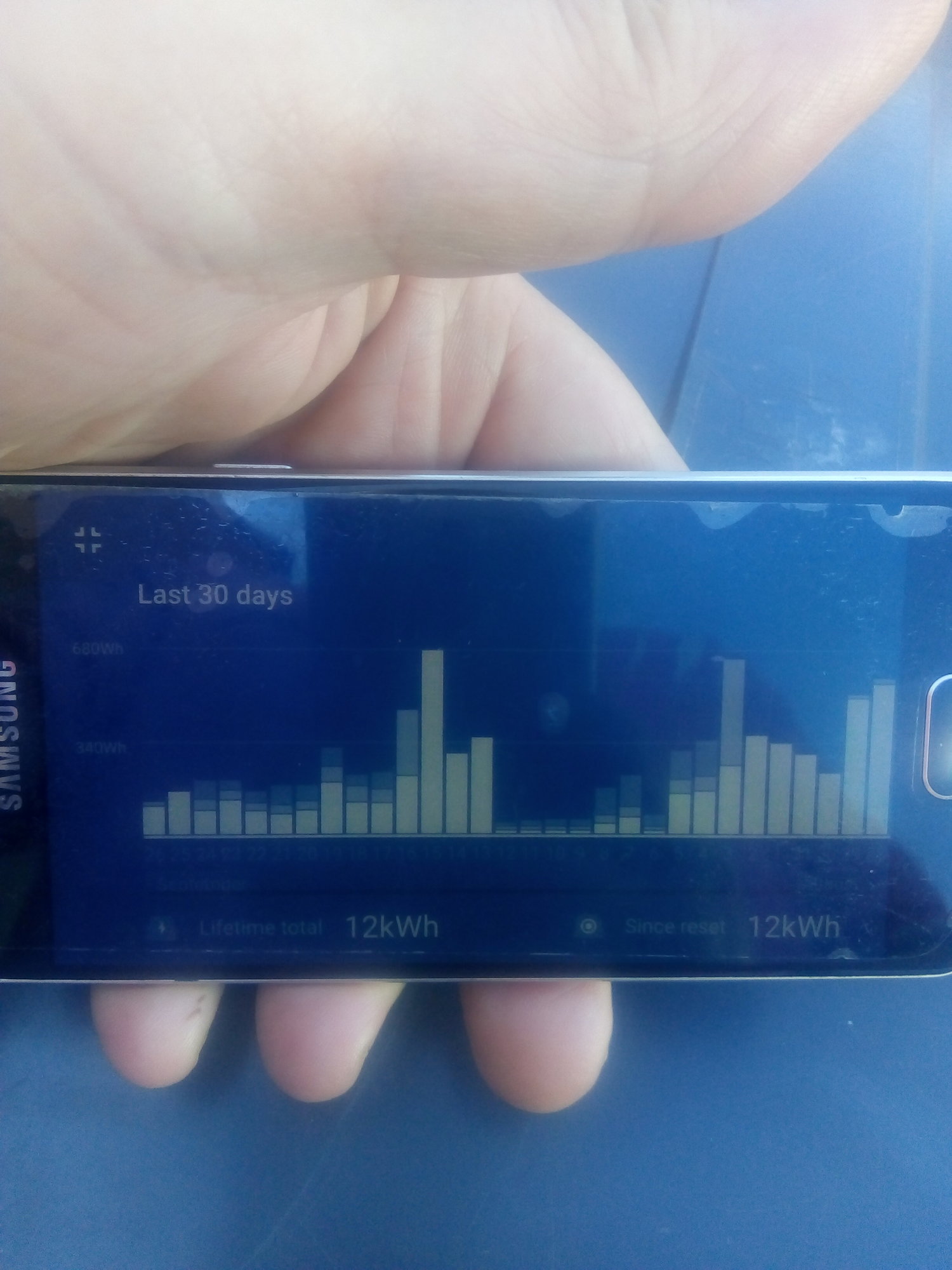

Report from victron thingy with just the fridge running and power collection from solar.
this is near empty fridge.
