using jump leads
- Thread starter n brown
- Start date
malagaoth
Guest
For starting a large diesel such as you might find in a M/home I have never had any success unless I connected directly to the dead battery - rather than the under bonnet connectors (maybe I'm just unlucky)
Lee
Full Member
- Posts
- 1,482
- Likes
- 1,824
I read somewhere that you should remove the negative lead on the dead battery and that way you aren't dragging the donor battery down with the dead battery voltage.
I have never tried this but I suppose if for some reason you can't put some charge into the dead battery by running the donor vehicle it probably is a good idea.
I have never tried this but I suppose if for some reason you can't put some charge into the dead battery by running the donor vehicle it probably is a good idea.
Welsh will
Free Member
- Posts
- 176
- Likes
- 185
Just a word of advice for all you Peugeot Boxer, Citroen Relay and Fiat Ducato owners of which are really all the same. If you ever need to jump start your vehicles use the designated earth point in the centre of your scuttle panel when you open the bonnet. Its like an upside down bolt for your Black jump lead. Do not use your wiper motor mounting at all costs even though located nearby as this will blow your engine ecu and cost you lots of money! The positive conection point for your red jump lead will be under a little flap at your Engine fusebox which is located behind your passenger side heaďlamp, again still under the bonnet. Using these points is actually better than lifting up the battery cover and connecting direct.
Dont want to feel as though im lecturing but see this mistake all to often in my job and its not covered under your warranty as we can tell straightaway that its been jumped using the wiper motor support bracket.
Dont want to feel as though im lecturing but see this mistake all to often in my job and its not covered under your warranty as we can tell straightaway that its been jumped using the wiper motor support bracket.
barge1914
Full Member
- Posts
- 1,968
- Likes
- 3,378
How does it work
How does it work? Must take a hefty current to jump start a diesel, and those cables don't look very thick at all.
How does it work? Must take a hefty current to jump start a diesel, and those cables don't look very thick at all.
Channa
Full Member
- Posts
- 0
- Likes
- 3
Lots of manufacturers BMW Rover as was and Citroen and Fiats advise against jumping,,,the sudden spike in electrickery a chance the electronics fry and leave an expensive bill
Nature of the site no doubt someone knows better but will they pay the bill for any damage caused ? ,,, Check handbooks before you even think about jumping a car ....things moved on since Austin A7s and Prefects .Vans full of electric tricks check !!
Channa
Nature of the site no doubt someone knows better but will they pay the bill for any damage caused ? ,,, Check handbooks before you even think about jumping a car ....things moved on since Austin A7s and Prefects .Vans full of electric tricks check !!
Channa
Deleted member 58274
Guest
Just looked under my 07 Boxer bonnet and can't see either of these connection points...or scuttle panel for that matter. There's no little flap on fuse box either ?? Only jumped it once directly to battery with no issues though. Maja
...oh there's no battery cover either....terminals exposed....is there something missing...no comment when it had cam belt done ?? Comments appreciated....Maja
Last edited by a moderator:
wildebus
Full Member
- Posts
- 9,034
- Likes
- 14,825
I would agree.

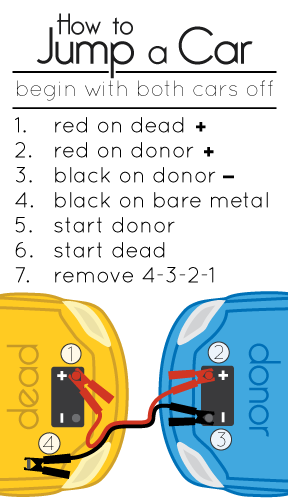

The initial diagram posted is a great start, but should be used only when also taking into account any specific info for both the car being jumped and the 'donor' car.
(I recall my DS5 had very specific info provided by the battery on where any jump leads can be connected)
Jeff G
Guest
The main lesson here is to learn where the connection points are before you need them.
Welsh will
Free Member
- Posts
- 176
- Likes
- 185
I appoligise Maja for not being clearer in my explanation. My words of warning are for the Boxer 3 models of which i think came into production around 2010 onwards . These vehicles have there Batteries located within the cabin and not under the Bonnet.
Appoligise for the misundestanding
Last edited:
Welsh will
Free Member
- Posts
- 176
- Likes
- 185
Been fixing the buggers longer than i thought then:sad: haha......remember fitting Rubber duck type aerials to the mk 2 on pdi when likes of Cambells and Marquis brought them in.
malagaoth
Guest
Im not an engineer or Peugeot specialist BUT its seems strange that they would install a set of jump start terminals under the bonnet if it wasnt safe to use them!
Welsh will
Free Member
- Posts
- 176
- Likes
- 185
Unfortunatly Batteries do go flat so it becomes a must really to sometimes have to jumo start them and manufacturers know this. Most new modern vehicles have that much of a demand with various electrical networks working behind the scenes that they arrive to us at dealers in a transportation mode which is basically a power saving mode whilst they stood waiting to be sold.
Yes jump starting can generate a possible voltage spike but if you are concerned just turn on your side lights before conecting your jump leads this should then absorb any voltage surges.
Its all about as somebody previously mentioned knowing where your jump lead connection points are. If unsure leave to the recovery guys who are meant to know what they doing.
malagaoth
Guest
My manual DOES give the instructions for 'starting from another battery' (page 105-6)
You say that you have been in the motor trade for 23 years, Peugeot was started in 1810 so its possible that they too know a thing or two!
As I say to my uneducated mind its would be perverse to install a feature whose sole application, if used, would cause expensive damage
Wooie1958
Full Member
- Posts
- 16,895
- Likes
- 17,513
Ah, Campbells :scared: that`s brought back a few nightmares :scared: and the discussions i had with their service manager :mad2::mad1::mad2::mad1:
Nabsim
Full Member
- Posts
- 6,381
- Likes
- 9,704
Mine is opposite of the diagram, I have jump started the mh twice now, car is a 2016 Astra and has a positive pole in engine compartment and a flange for negative, not sure where the battery is located, on last one it was under back seat. Mh is a 2.7 diesel sprinter base so connect to battery poles.
As to pulling done battery down I always connect jump leads then start doner vehicle engine and leave it running a few minutes before trying to start flat battery vehicle then once started I disconnect. Not for fear of pulling done battery down but just to get them out the way. If it sounds like doner engine stutters it needs someone in the vehicle lifting revs.
Thats my system anyway and it will depend if you have an accessible battery on vehicles. My first choice would always be battery post to battery post but no idea if its recommended or not just that eliminates every other electrical component on the vehicles
As to pulling done battery down I always connect jump leads then start doner vehicle engine and leave it running a few minutes before trying to start flat battery vehicle then once started I disconnect. Not for fear of pulling done battery down but just to get them out the way. If it sounds like doner engine stutters it needs someone in the vehicle lifting revs.
Thats my system anyway and it will depend if you have an accessible battery on vehicles. My first choice would always be battery post to battery post but no idea if its recommended or not just that eliminates every other electrical component on the vehicles
harrow
Full Member
- Posts
- 7,610
- Likes
- 10,089
The reason for not doing that is sparks and exploding car batteries, last connection made away from a gassing car battery.
:idea::idea::idea:
:wave:
