Air suspension Transit MK7
- Thread starter Neckender
- Start date
Neckender
Full Member
- Posts
- 2,628
- Likes
- 3,506
Ford Auto roller 100 with garage 3500kg.
Prevents body roll on roundabouts, Also when overtaking heavy goods vehicles. Leveling if one side is heavier than the other, levelling on uneven ground, also prevents rear springs sagging.
The other reason is personal choice.
Prices on the Marcle leisure site.
John.
Northerner
Guest
I too have air suspension on a Transit Mk7 and it's superb. Mine was fitted professionally as I'm useless at anything resembling D.I.Y. I have a motorhome with a large garage and a longish overhang and we often carry two bikes on a rack, so there is a bit of a lever effect on the rear suspension.

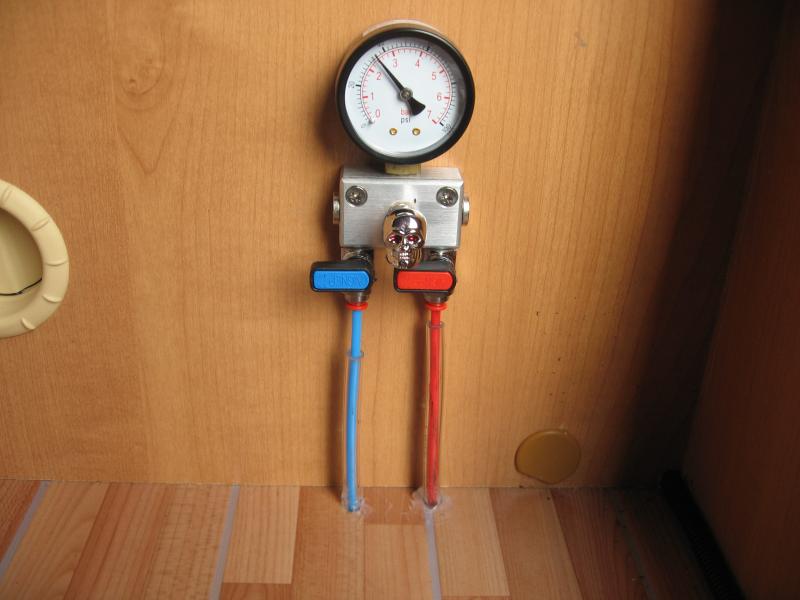

It makes for a comfortable ride, the 'van is always level or slightly nose down and, depending on the load, a few swift strokes of a foot pump raises it. There's a gauge and an air valve just inside the habitation door for when I need to adjust it.
I've had it two years and done 22,000 miles and it's been fine. The brand is Air-ride and it was just over £500 fitted, but I suspect that you'd pay about £300 if you can do it yourself. You can get some that can be adjusted from a switch in the cab but I didn't feel that I needed that level of sophistication.
It makes for a comfortable ride, the 'van is always level or slightly nose down and, depending on the load, a few swift strokes of a foot pump raises it. There's a gauge and an air valve just inside the habitation door for when I need to adjust it.
I've had it two years and done 22,000 miles and it's been fine. The brand is Air-ride and it was just over £500 fitted, but I suspect that you'd pay about £300 if you can do it yourself. You can get some that can be adjusted from a switch in the cab but I didn't feel that I needed that level of sophistication.
Last edited:
maingate
Full Member
- Posts
- 12,696
- Likes
- 18,333
Before you go for the air suspension, just check with Ford to see if they have an uprated spring available.
I know that on the Ducato based motorhomes there is an option to fit a leaf spring with an extra leaf. Normally, most of them leave the converters factory with the basic panel van springs fitted.
Neckender
Full Member
- Posts
- 2,628
- Likes
- 3,506

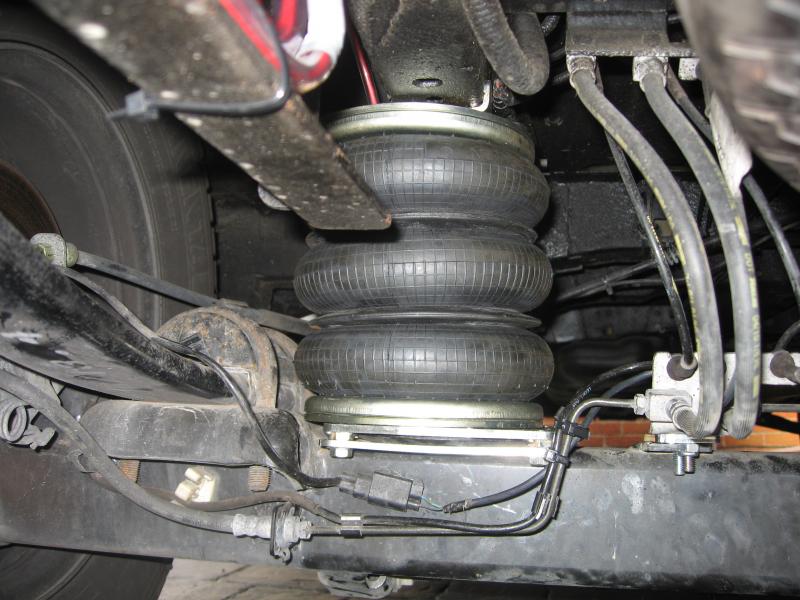

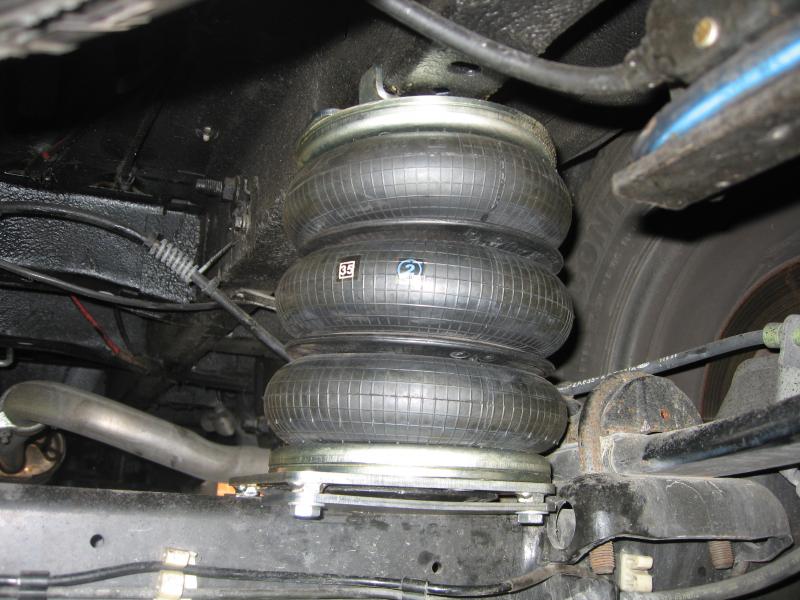

Hi Ian, I've taken the van out today for a decent run since fitting the air springs, the difference is unbelievable, road humps and ramps are a lot smoother, roundabouts no body roll.
The ones I've fitted are Dunlop and dearer than Northener paid 2 years ago.
Transit front wheel drive £546 basic kit.
£67 for seperate pressure gauge left handed, right handed, or bottom fitting.
I also have a large garage and a long rear overhang.
John.
Northerner
Guest
I think I may have mislead people re the cost. I checked the receipt and it was just over £500 fitted and I assumed that labour would have been about £50 an hour for four hours. I think I must have had a very good deal because, at the same time I had a large solar panel, a satellite dome, a new 12v digibox and LED lights and the total bill was about £3000, so I must have got a decent discount. I know that I asked for a bit of discount as it was the second of a series of installations that this firm has done for me (Leisurepower in Warrington).
I've since checked and the kit alone for fitting yourself is £595 so I'd hate the OP to think he'd overpaid or that you can in fact get one for about £300. Apologies
It's still brilliant and worth every penny, even at the new price.
I've since checked and the kit alone for fitting yourself is £595 so I'd hate the OP to think he'd overpaid or that you can in fact get one for about £300. Apologies
It's still brilliant and worth every penny, even at the new price.
sak
Guest
Dunlop Air Suspension
The Dunlop air bellows are 8 inch diameter most others are a lot smaller but you only get what you pay for the same as everything else.
The Dunlop air bellows are 8 inch diameter most others are a lot smaller but you only get what you pay for the same as everything else.
