Linking 2 leisure batteries??

chrishunter

Full Member
Posts
32
Likes
58
My idea is to link 2 leisure batteries, by drilling a cable size hole in the battery compartment making it a tight fit.Feeding 2core cable through to the compartment under the back seat {compass avantgarde 200} to the other leisure battery. Now the questions are what size cable to use would 2 core 1.5mm do it, will the alternator be able to charge all 3 batteries and am I correct in wiring the positive terminal to the negative second battery and the negative to positive on the spare battery.


colinm

Full Member
Posts
2,770
Likes
2,569
1.5mm cable? Absolutely not! nowhere near close.
Your suggestion/thoughts on how to cable is very wrong as well.

Sorry to say this, but I don't think you have enough knowledge to tackle this job.
As this, you appear to be so far from being correct I don't feel it right to give instructions via posts on this this forum.


chrishunter

Full Member
Posts
32
Likes
58
1.5mm cable? Absolutely not! nowhere near close.
Your suggestion/thoughts on how to cable is very wrong as well.

Sorry to say this, but I don't think you have enough knowledge to tackle this job.
sorry that should have been pos to pos and neg to neg ,could I use 2.5 cable


trevskoda

Full Member
Posts
23,807
Likes
27,267

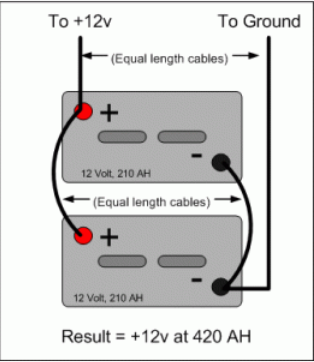

Its done like this using proper battery cable & clamps which can be bought at any good car shop, do get someone else to do the job.
correct battery connection.png


trevskoda

Full Member
Posts
23,807
Likes
27,267
I THINK I`LL CARRY ON SWOPPING THE BATTERIES OVER WHEN I`M AWAY..THOUGHT IT MIGHT SAVE MY BACK..
A garage could do this in an hr for you, have you no solar or is the engine not charging the battery, as a rule 200ah of batts is required to wild camp for a full 24 hr day max.


Robmac

Full Member
Posts
26,401
Likes
34,464
A garage could do this in an hr for you, have you no solar or is the engine not charging the battery, as a rule 200ah of batts is required to wild camp for a full 24 hr day max.

I wouldn't go that far Trev.

My first camper didn't even have a leisure battery!


chrishunter

Full Member
Posts
32
Likes
58
A garage could do this in an hr for you, have you no solar or is the engine not charging the battery, as a rule 200ah of batts is required to wild camp for a full 24 hr day max.
I don't have solar ,and i`ve just had a new alternator fitted.when I do a check under the bonnet I always check the battery and the charge with a meter..


trevskoda

Full Member
Posts
23,807
Likes
27,267
I don't have solar ,and i`ve just had a new alternator fitted.when I do a check under the bonnet I always check the battery and the charge with a meter..
Solar is a requirement these days for the loads and charging when you have stopped, something you should be looking into as summer will be here soon. (y)


1 Cup

Full Member
Posts
848
Likes
348
The amps you draw is how thick the jump wire should be.
You can just use
The cable I use for my old van. I got from scrap yard including terminals cut straight from under bonnet off any car, 13 or 10 mm spanner used to remove terminals from battery before I cut cables

Last edited:

Tookey

Full Member
Posts
1,253
Likes
1,991
Hi Chris,

Like you I am a novice and after your first post understand why those that are knowledgeable are now hesitant to give advice. Can I suggest doing your own research on youtube and then coming back here and asking for confirmation that what you've figured out will work, is safe and then do the project.

Some replies do seem brutal but that is only cos nobody wants you stuck in a moho on fire

(y):)
