WATER SYSTEM
Filling your fresh water tank
Your new Elddis motorhome is fitted with a
Whale Autofill water system. In order to fill up
and automatically top up your water tank from
either a fixed water supply or a water container
please follow the instruction given on the next
page.
Please take care not to over fill your tank it is
advised that someone monitors the water level in
the tank while filling is in progress.
Waste Water Tank
Your new Explorer Group motorhome is also
fitted with a 451itre waste water tank. All waste
water excluding the toilet waste will run into the
waste water tank. The level of water in the tank
can be monitored using the control panel.
Opening the grey waste outlet provided on the
outside of the motorhome empties the tank.
Open the tap when the outlet is over a drain and
the water will run out of the tank.
Draining Down Your Water System
(i)
It is essential that you drain down your
motorhome water system when it is not in
use. This is most important during winter
months to protect against frost damage
(ii) Disconnect the water pump and switch off
power supply.
(iii) Remove the water heater
fuse from the
switch spur and store in a safe place.

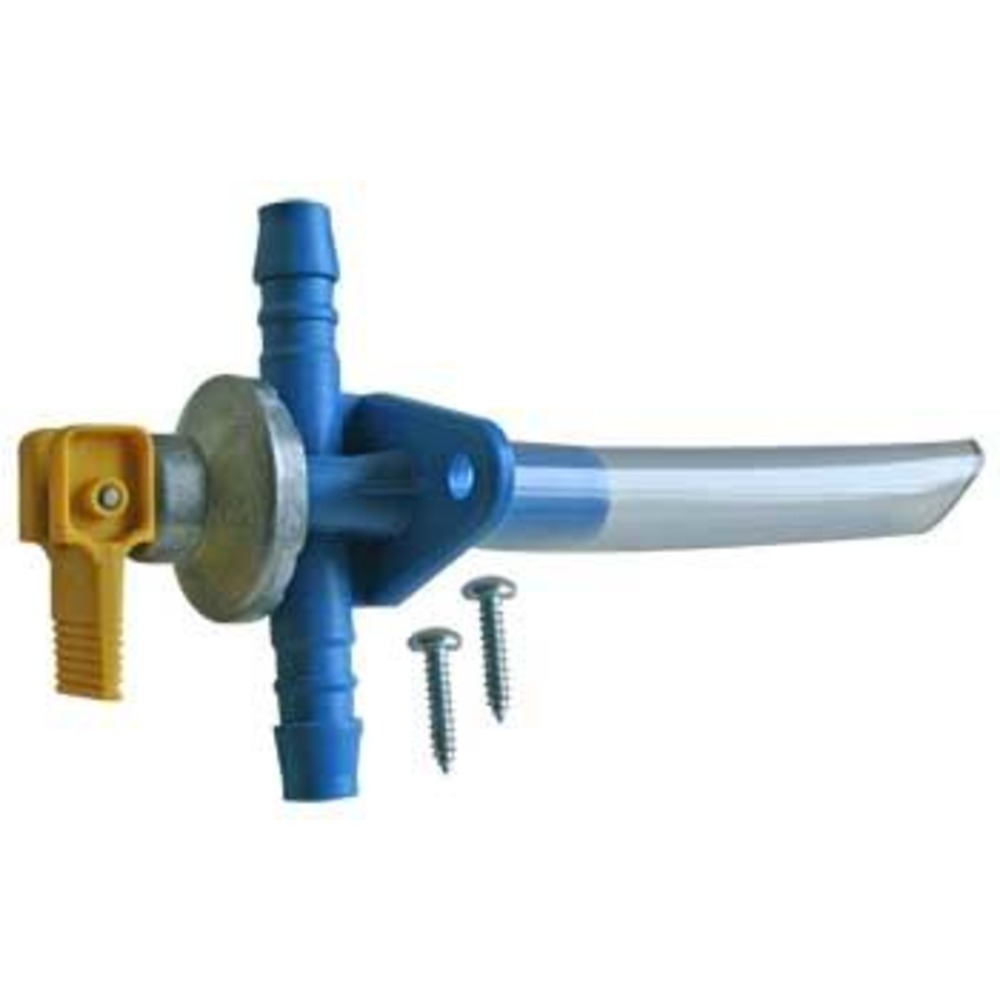

(iv) Open the safety drain valve on the water
heater located next to the water heater.
(v) Open all taps and remove all plugs from
sinks and showers. Lever operated taps
should have the lever put into the up and
central position.
(vi) Open both the blue and grey drain outlets
on the outside of your motorhome.
(vii) Adjust the level of the motorhome to
ensure that the drain outlet is at the lowest
point of the motorhome. This will aid the
flow of water to ensure all water is drained
off.
After 30 minutes level the motorhome and
prepare it for storage if necessary.
